Product Description

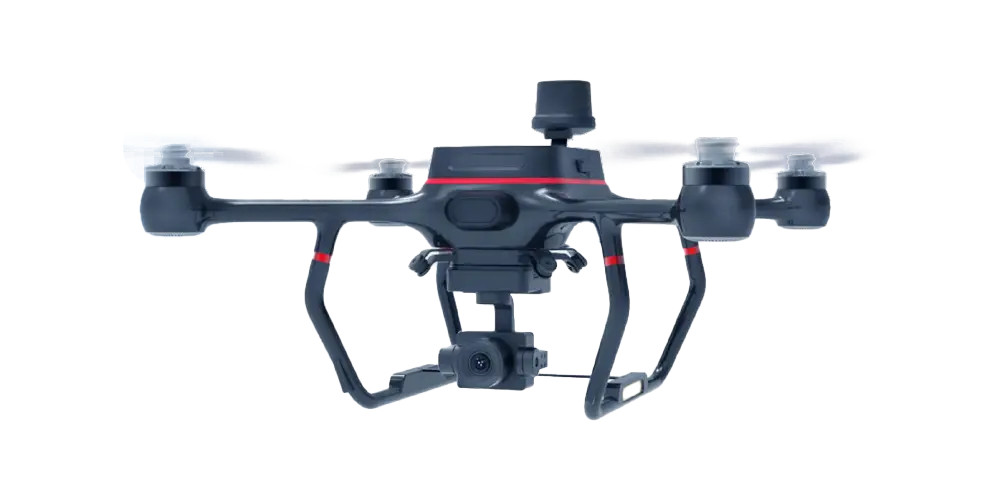

DMR D313 Inspection Drone
Flexible Deployment1.7 lbs Payload
4.4 lbs Maxiumum Take-off Weight
This four-rotor small UAV supports thermal imaging and visible-light dual-imaging. With flexible deployment capabilities, it also supports up to 9.3 miles of HD remote image transmission. The fuselage is equipped with 12 visual sensors, integrating 19 sensor groups to build 3D maps and plan real-time paths. Easily traverse complex environments such as jungles, mountains, cities and flight escort missions.
Aircraft Technical Specifications
Model
D313 RTK quadrotor UAV
Smart Battery
22.2V 7000mAh LiPo 6S
Normal Takeoff Weight
3.04 lbs (including battery)
Maximum Takeoff Weight
4.4 lbs (near sea level)
Maximum Rising Speed
16.4 ft/s
Maximum Descent Speed
9.8 ft/s
Maximum Horizontal Flight Speed
Loiter mode: 11.2 mph, Cruise mode: 22.4 mph (11.2–44.7 mph adjustable), Attitude mode: 33.6 mph (in a calm environment)
Maximum Tilt Angle
35°
Maximum Flight Altitude
14764 ft
Maximum Rotational Angular Velocity
150°/s
Maximum Allowable Wind Speed
37.8 mph
Maximum Battery Life
Approximately 45 minutes (with camera head mounted, sea level)
Recommended Working Environment Temperature
14°F to 104°F
Cooperate with Network RTK
Level: 0.39 in+1ppm; Vertical: 0.79 in+1ppm (GPS positioning is working properly, network RTK connection is normal)
-
