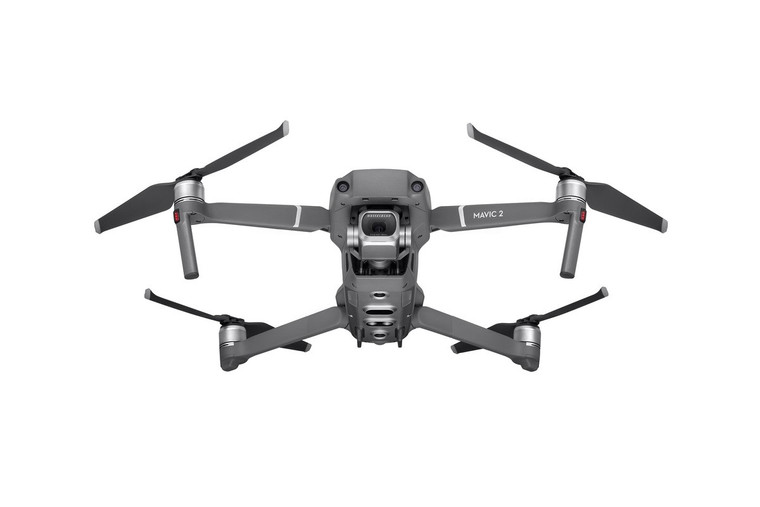

Our dream has always been to make a drone that exists where engineering, technology, and the needs of the aerial photographer converge. A drone that embodies all of DJI's advanced, signature technologies, and is able to redefine what is possible for the world of aerial photography.
In creating the Mavic 2, we have made this dream come true.
Made in Sweden, Hasselblad cameras are renowned for their iconic ergonomic design, uncompromising image quality, and Swedish craftsmanship. Since 1941, Hasselblad cameras have captured some of the world’s most iconic images – including the first moon landing.
Co-engineered in partnership with Hasselblad after two years of tireless research, the Mavic 2 Pro comes equipped with the all-new Hasselblad L1D-20c camera. The L1D-20c possesses Hasselblad’s unique Hasselblad Natural Colour Solution (HNCS) technology, 5 helping users to capture gorgeous 20-megapixel aerial shots in stunning color detail.
The brand new 1-inch CMOS sensor has an active sensing area four times more effective than the original Mavic Pro. The large sensor also means better performance in low-light environments with a more extensive ISO range, max ISO lifted from 3200 to 12800.
* Effective Pixel Area
The Mavic 2 Pro supports a 10-bit Dlog-M color profile that yields higher dynamic range for more flexibility in the grading room. The system records over 1 billion colors (compared to the 16 million colors from traditional 8-bit color coding technologies) and retains more in-depth details in both highlights and shadows. Now you can capture the subtlest gradations at sunset or sunrise, leaving greater space for post-production.
With 4K 10-bit HDR support, the Mavic 2 Pro can be plugged into a 4K TV with HLG and will immediately play back footage with the right color tones. The brighter highlights and increased contrast are what make HDR video so appealing.
The f/2.8-f/11 adjustable aperture delivers outstanding image quality both in high and low-light environments. When shooting in low light, set the aperture to f/2.8 to allow more light in and to capture bright and clear photos. When shooting in well-lit environments, set the aperture to f/11 to lower the shutter speed and make your videos smoother.
The DJI Smart Controller comes with an ultra-bright 5.5-inch 1080p display that maintains clear visibility and vivid color even in direct sunlight. The installation of third-party apps is supported, and an optimized version of the DJI GO 4 app comes pre-installed along with the new SkyTalk feature for livestreaming flights. Easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI GO 4 app’s new Go Share function. With intuitive controls and easy set-up, users can get in the air fast and never miss a moment of the action.
Sensor | 1” CMOS Effective Pixels: 20 million |
---|---|
Lens | FOV: about 77° 35 mm Format Equivalent: 28 mm Aperture: f/2.8–f/11 Shooting Range: 1 m to ∞ |
ISO Range | Video: 100-6400 Photo: 100-3200 (auto) 100-12800 (manual) |
Shutter Speed | Electronic Shutter: 8–1/8000s |
Still Image Size | 5472×3648 |
Still Photography Modes | Single shot Burst shooting: 3/5 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s) |
Video Resolution | 4K: 3840×2160 24/25/30p 2.7K: 2688x1512 24/25/30/48/50/60p FHD: 1920×1080 24/25/30/48/50/60/120p |
Max Video Bitrate | 100Mbps |
Color Mode | Dlog-M (10bit), support HDR video (HLG 10bit) |
Supported File System | FAT32 (≤ 32 GB) exFAT (> 32 GB) |
Photo Format | JPEG / DNG (RAW) |
Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Takeoff Weight | Mavic 2 Pro: 907 g Mavic 2 Zoom: 905g |
---|---|
Dimensions | Folded: 214×91×84 mm (length×width×height) Unfolded: 322×242×84 mm (length×width×height) |
Diagonal Distance | 354 mm |
Max Ascent Speed | 5 m/s (S-mode) 4 m/s (P-mode) |
Max Descent Speed | 3 m/s (S-mode) 3 m/s (P-mode) |
Max Speed (near sea level, no wind) | 72 kph (S-mode) |
Max Service Ceiling Above Sea Level | 6000 m |
Max Flight Time (no wind) | 31 minutes (at a consistent 25 kph) |
Max Hovering Time (no wind) | 29 minutes |
Max Flight Distance (no wind) | 18 km (at a consistent 50 kph) |
Max Wind Speed Resistance | 29–38 kph |
Max Tilt Angle | 35° (S-mode, with remote controller) 25° (P-mode) |
Max Angular Velocity | 200°/s |
Operating Temperature Range | -10°C to 40°C |
Operating Frequency | 2.400 - 2.483 GHz 5.725 - 5.850 GHz |
Transmission Power (EIRP) | 2.400 - 2.483 GHz FCC:≤26 dBm CE:≤20 dBm SRRC:≤20 dBm MIC:≤20 dBm 5.725-5.850 GHz FCC:≤26 dBm CE:≤14 dBm SRRC:≤26 dBm |
GNSS | GPS+GLONASS |
Hovering Accuracy Range | Vertical: ± 0.1 m (when vision positioning is active) ± 0.5 m (with GPS positioning) Horizontal: ± 0.3 m (when vision positioning is active) ± 1.5 m (with GPS positioning) |
Internal Storage | 8 GB |
Sensing System | Omnidirectional Obstacle Sensing1 |
---|---|
Forward | Precision Measurement Range: 0.5 - 20 m Detectable Range: 20 - 40 m Effective Sensing Speed: ≤ 14m/s FOV: Horizontal: 40°, Vertical: 70° |
Backward | Precision Measurement Range: 0.5 - 16 m Detectable Range: 16 - 32 m Effective Sensing Speed: ≤ 12m/s FOV: Horizontal: 60°, Vertical: 77° |
Upward | Precision Measurement Range: 0.1 - 8 m |
Downward | Precision Measurement Range: 0.5 - 11 m Detectable Range: 11 - 22 m |
Sides | Precision Measurement Range: 0.5 - 10 m Effective Sensing Speed: ≤ 8m/s FOV: Horizontal: 80°, Vertical: 65° |
Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
Input | 100-240 V, 50/60 Hz, 1.8A |
---|---|
Output | Main: 17.6 V ⎓ 3.41 A or 17.0 V ⎓ 3.53 A USB: 5 V⎓2 A |
Voltage | 17.6 ± 0.1 V |
Rated Power | 60 W |
Video Transmission System | OcuSync 2.0 |
---|---|
Name | DJI GO 4 |
Live View Quality | Remote Controller: 720p@30fps / 1080p@30fps DJI Goggles: 720p@30fps / 1080p@30fps DJI Goggles RE: 720p@30fps / 1080p@30fps |
Latency (depending on environmental conditions and mobile device) | 120 - 130 ms |
Max Live View Bitrate | 40Mbps |
Mechanical Range | Tilt: -135–45° Pan: -100–100° |
---|---|
Controllable Range | Tilt: -90–30° Pan: -75–75° |
Stabilization | 3-axis (tilt, roll, pan) |
Max Control Speed (tilt) | 120° /s |
Angular Vibration Range | ±0.01° (Mavic 2 Pro) ±0.005° (Mavic 2 Zoom) |
Operating Frequency | 2.400 - 2.483 GHz; 5.725 - 5.850 GHz |
---|---|
Max Transmission Distance (unobstructed, free of interference) | 2.400 - 2.483 GHz; 5.725 - 5.850 GHz FCC: 8000 m CE: 5000 m SRRC: 5000 m MIC: 5000 m |
Operating Temperature Range | 0℃ - 40℃ |
Transmission Power (EIRP) | 2.400 - 2.483 GHz FCC: ≤26 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm 5.725-5.850 GHz FCC: ≤26 dBm CE: ≤14 dBm SRRC: ≤26 dBm |
Battery | 3950 mAh |
Operating Current/Voltage | 1800 mA ⎓ 3.83 V |
Supported Mobile Device Size | Max length: 160 mm; max thickness: 6.5–8.5 mm |
Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
Capacity | 3850 mAh |
---|---|
Voltage | 15.4 V |
Max Charging Voltage | 17.6 V |
Battery Type | LiPo 4S |
Energy | 59.29 Wh |
Net Weight | 297 g |
Charging Temperature Range | 5℃ to 40℃ |
Max Charging Power | 80 W |
Supported SD Cards | Micro SD™ Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3 |
---|---|
Recommended microSD Cards | 32G Sandisk V30 Sandisk Extreme V30 Pro 64G Sandisk Extreme Pro V30 128G Sandisk Extreme V30 Sandisk Extreme Pro V30 Kingston Canvas Go! Kingston Canvas React |
Footnotes | [1] Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack , POI, QuickShot and Tripod mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety. |
---|---|
These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended. |
