Resolution: 1024x600 pixels
Dot pitch: 0.1506(H) × 0.1432(V) mm
Aspect ratio: 16:9
Brightness: 600cd/m²
Contrast: 800:1
Backlight: LED
Viewing Angle:85°/85°(L/R) 85°/85°(U/D)

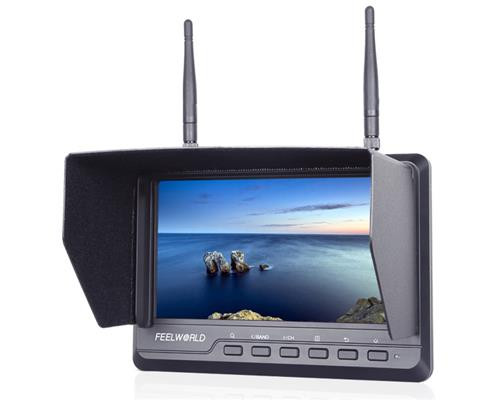

This FPV monitor is the most cost-effective 5.8G 32CH Diversity Receiver 7” IPS Screen with a super bright LCD 600cd/m² and built in rechargeable battery. The input signals is AV, RF. The OSD with battery status and channel information. FPV720 is excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 600cd/m² is plenty of brightness for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV ground station compact and easy to use. Perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.
|
What's in the Box (included)
Display |
Description |
7'' 600cd/m² IPS panel FPV Monitor with built-in battery dual 32CH 5.8GHz diversity receivers |
||||||
Model |
FPV720 |
|||||||
Screen Size |
7" |
|||||||
Resolution |
1024x600 pixels |
|||||||
Dot pitch |
0.1506(H) × 0.1432(V) mm |
|||||||
Aspect ratio |
16:9 |
|||||||
Brightness |
600cd/m² |
|||||||
Contrast |
800:1 |
|||||||
Viewing Angle |
85°/85°(L/R) 85°/85°(U/D) |
|||||||
Backlight |
LED |
|||||||
Support Formats |
Support video format |
PAL-4.43/NTSC-3.58 |
||||||
Input |
AV |
1 |
||||||
RF |
1 |
|||||||
Audio |
Speaker |
1 |
||||||
Power |
Built-in battery |
7.4V/2200mA (2 hours) |
||||||
Power Consumption |
≤13W |
|||||||
Input Voltage |
DC 9-18V |
|||||||
Environment |
Working Temperature |
-20℃~50℃ |
||||||
Storage Temperature |
-30℃~65℃ |
|||||||
Install Way |
1/4"-20 Thread mounting socket |
|||||||
Dimension |
Unit Size |
191L×134.7H ×23D (mm) |
||||||
Unit Weight |
380g/ 470g((with battery)) |
|||||||
Wireless Built-in Receiver 32 Standard Channels |
||||||||
BAND |
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880
|
