Screen Size：  7"
Resolution：   800x480 pixels
Aspect ratio： 16:9
Brightness：   1000cd/m²
Contrast：     500:1
Backlight：    LED
Viewing Angle：70°/70°(L/R) 50°/70°(U/D)

Input

Output

HDMI
Video
Audio
RF

Video

Display

Description

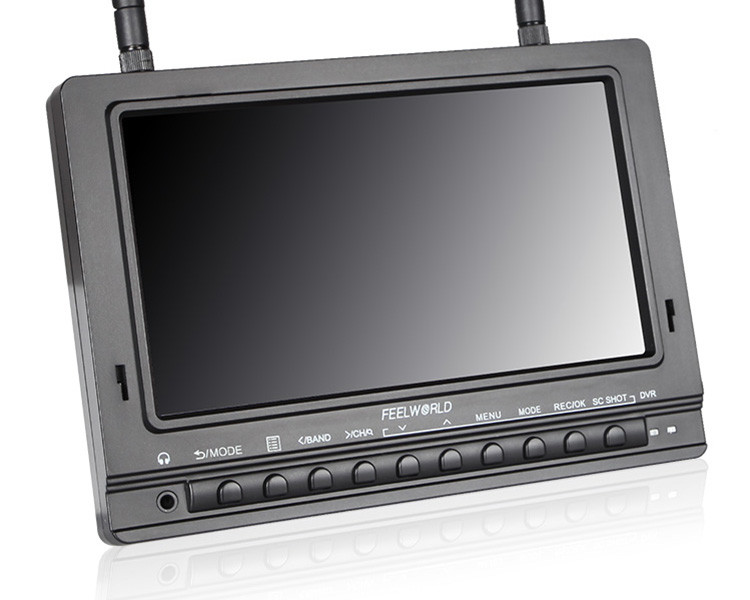

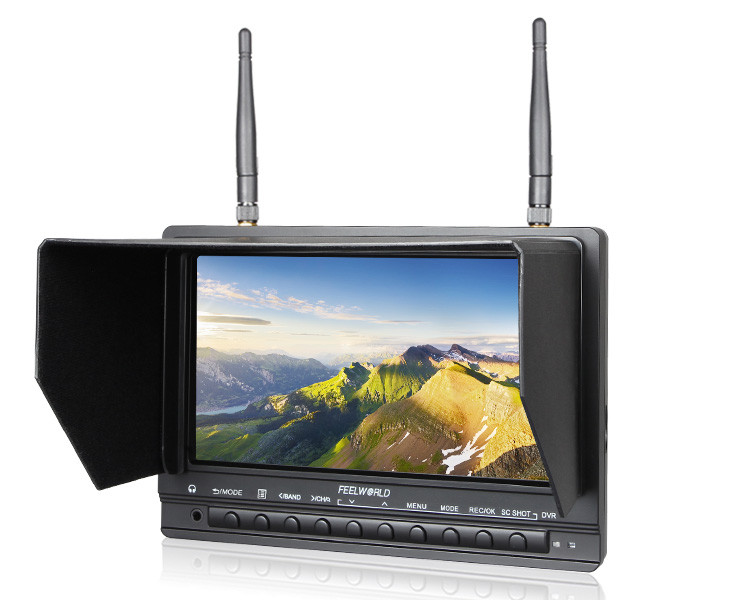

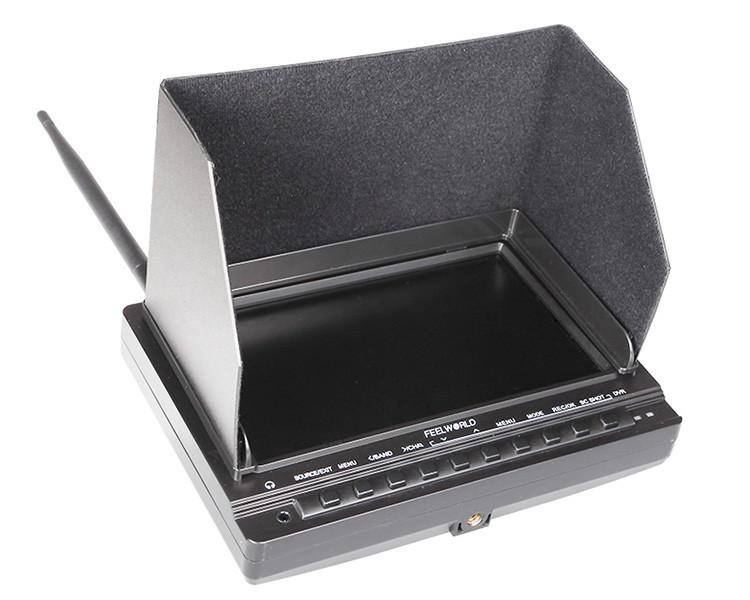

7'' High brightness 1000cd/m² FPV DVR Monitor built-in battery dual 32CH 5.8GHz diversity receivers

Model

PVR733

Resolution

800x480 pixels

Dot pitch

0.0642(W) × 0.1790(H) mm

Aspect ratio

16:9

Brightness

1000cd/m²

Contrast

500:1

Viewing Angle

70°/70°(L/R) 50°/70°(U/D)

Backlight

LED

Support Formats

Support video format

PAL-4.43/NTSC-3.58

Input

HDMI

1

Video

1

Audio

1

RF

1

Output

Video

1

Audio

Speaker

1

Ear Phone Slot

1

Power

Built-in battery

7.4v/2200mA (2 hours)

Power Consumption

≤13W

Input Voltage

DC 9-19V

Environment

Working Temperature

-20℃～50℃

Storage Temperature

-30℃～65℃

Install Way

1/4"-20 Thread mounting socket

Dimension

Unit Size

188.4×134H×33.7D(mm)

Unit Weight

450g/540g(with battery)

Wireless Built-in Receiver 32 Standard Channels

            BAND

 CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

A

5865

5845

5825

5805

5785

5765

5745

5725

B

5733

5752

5771

5790

5809

5828

5847

5866

E

5705

5685

5665

5645

5885

5905

5925

5945

F

5740

5760

5780

5800

5820

5840

5860

5880
