Hitec X4-Eighty Four Port DC/DC Multi-Charger

Hitec X4-Eighty Four Port DC/DC Multi-Charger HSCGX480

×

Sorry this item is currently out of stock

Submit email below to be notified when back in stock

×
Brand:
RRP:
$209.00
Your Price:
$169.00 (You save $40.00)
SKU:
HRC44169
Availability:
Usually Ships Within 1 Business Day
Shipping:
Calculated at checkout
Description
Specifications
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
  • Product Description

    Product Description

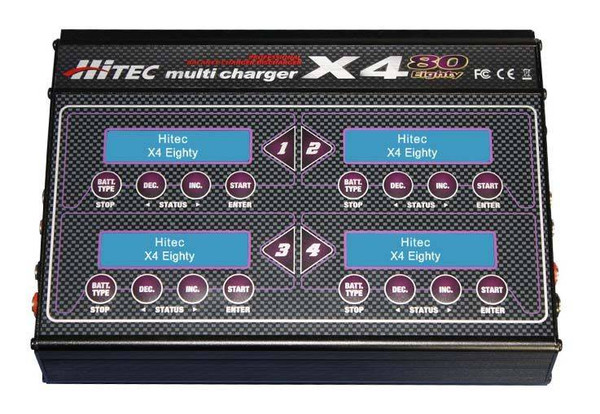

    The X4-Eighty Multi-Charger features four identical and independent 80-watt power outputs for a total output of 320 Watts. Each microprocessor-controlled port is capable of charging all types of rechargeable batteries at up to 6 amps. Four individual balancing ports eliminate the need for a separate balancer when charging Lithium batteries. Equipped with a twin fan cooling system and an internal sensor for controlling fan speed, the X4-Eighty delivers the reliability and safety required to charge your LiPo, LiFe, LiIon, NiCd, NiMh or Lead Acid batteries. Its powerful capability combined with its reliable, safety functions make it the perfect choice for all electric and nitro modelers. Whether you are a weekend flier, an aerobatic master, a heli pilot or a mid-level to pro basher or racer, this is the charger for you.

    Features

    Optimized Operating Software
    The software in X4 Eighty automatically controls the current rate during the charging or discharging process. This feature can prevent the user from overcharging their batteries which could lead to damage or injury. If the charger detects a malfunction, the circuit automatically disconnects and an alarm will sound, The operating functions of the X4 Eighty are controlled through a two-way communication link in order to maintain maximum safety with minimal errors. All of these functions and settings are easily configured by the user.

    Internal Independent Lithium Battery Balancers
    Each channel of the X4 Eighty employs an individual-cell voltage balancer eliminating the need for an external balancer for balance charging.

    Charges Most Popular Lithium Batteries
    The X4 Eighty is compatible with the three most common Lithium chemistry batteries, Li-Ion, LiPo and LiFe

    Multiple Lithium Battery Charge Modes
    The X4 Eighty's programming allows for Fast Charge, Balance Charge or Storage Charge Modes for LiPo, Li-Ion, and LiFe batteries.

    • Fast Charge Mode: Reduces charging time, but does not balance the cells, this mode only charges the battery to approximately 90% capacity.
    • Balance Charge Mode: Monitors individual cell voltage, keeping the cells within an acceptable voltage range and charges the pack to peak capacity.
    • Storage Charge Mode: Used for long-term battery storage. Adjusts the voltage level so the battery will not be damaged during long term storage.

    Delta Peak Technology for Maximum Safety
    The automatic charge termination program utilizes Delta-Peak voltage detection. When the battery's voltage exceeds the threshold, the charge process is terminated automatically.

    Automatic Charging Current Limit
    The maximum charge rate can be manually set when charging NiCd or NiMH batteries. The X4 Eighty will auto-detect when the batteries are fully charged and shut off, even with low impedance NiMH packs.

    Capacity and Processing Time Limit
    The charging capacity is calculated as the charging current multiplied by time. If the charging capacity exceeds the maximum limit set by the user, the process will terminate automatically. Additionally the user can set the maximum amount of charging time. If the charging time exceeds this limit, the process will terminate automatically.

    Temperature Threshold
    The battery's internal chemical reaction causes the temperature of the battery to rise during the charging process. If the temperature exceeds the limit, the charging process will automatically terminate.

    * This function is available by connecting an optional temperature probe, which is not included in our package.

    5 User Customizable Presets Per Channel
    The X4 Eighty features 5 individually customizable presets so the user can store the charge and discharge parameters for any particular battery type. These presets can be recalled for the desired battery type without the need for any additional programming.

    Cyclic Charging / Discharging
    Batteries can be set to automatically Charge/Discharge or Discharge/Charge up to a maximum of 5 cycles.

    PC Based Analysis Using USB Communication*
    The Hitec X4 Eighty offers a PC-based program which can analyze the characteristics of the battery via a USB port. It shows a graph of voltage, current and capacity curves. It also displays the individual voltage of each cell in the lithium battery pack.

    * A PC-LINK USB adaptor can be purchased separately.

    Battery Type Number of Cells Voltage Level Max. Charge Voltage Max. Fast Charge Rate Min. Discharge Voltage
    NiCd 1 - 15 1.2V / Cell 1.5V / Cell 1 - 2C* 0.85V / Cell
    NiMh 1 - 15 1.2V / Cell 1.5V / Cell 1 - 2C* 1.0V / Cell
    Li-Ion 1 – 6 3.6 / Cell 4.1V / Cell 1C 2.5V / Cell
    LiPo 1 – 6 3.7V / Cell 4.2V / Cell 1C 3.0V / Cell
    LiFe 1 – 6 3.3V / Cell 3.6V / Cell 4C 2.0V / Cell
    Pb (Lead Acid) 1 - 10 2.0V / Cell 2.46V / Cell 0.4C 1.75V / Cell

    Input Requirements: 12 - 15 Volts DC, 30 Amp Minimum
