4Hawks Raptor SR for Autel Smart Controller v3 (EF9-3 Controller) EU-Spec

4Hawks Raptor SR for Autel Smart Controller v3 (EF9-3 Controller) EU-Spec

×
×
Brand:
Price:
$159.00
SKU:
A142S
Availability:
Usually Ships Within 1 Business Day
Shipping:
Calculated at checkout
Quantity:
Description
Specifications
Product Videos
Specifications
Reviews
Related Products
Also Viewed
By Category
  • Product Description







    Raptor SR for Autel Smart Controller v3 (EF9-3 Controller) EU-Spec






    You can now reach further distance than with the standard stock antennas provided by the drone manufacture. By upgrading to the new, dual band antenna by 4Hawks, the Raptor SR Range Extender will increase your drone’s flight range.  During design, all materials were precisely selected and engineered to give you the best flight experience possible. The radio transparent radome is made by an advanced injection molding process. The concept behind the look of the antenna was to keep the main merits of DJI Smart Controller, which is its compact size. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces).




    FEATURES
    • Maximize performance
    • Concurrent dual band 2.4 & 5GHz
    • No modification to the drone itself
    • Long range extension without external boosters
    • Complete solution
    • Controller NOT included


    SPECIFICATIONS



    Electrical parameters

    Frequencies Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
    Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
    Gain Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
    Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
    VSWR Port 1:   < 1.50  (max. < 2.15)
    Port 2:   < 1.50  (max. < 2.15)
    Beamwidth Port 1:   90°/65° & 55°/55°
    Port 2:   90°/65° & 55°/55°
    Polarization Port 1:   Vertical
    Port 2:   Vertical
    Impedance Port 1:   50 Ω
    Port 2:   50 Ω



    Mechanical parameters

    Material Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
    Mounting:   Stainless steel + paint
    Weight ~ 180g (110g Antenna + 70g Mounting)
    Dimensions 16.1 x 9.1 x 1.7 cm
    6.34 x 3.60 x 0.67 inch
    Connection Port 1:   RP-SMA female
    Port 2:   RP-SMA female

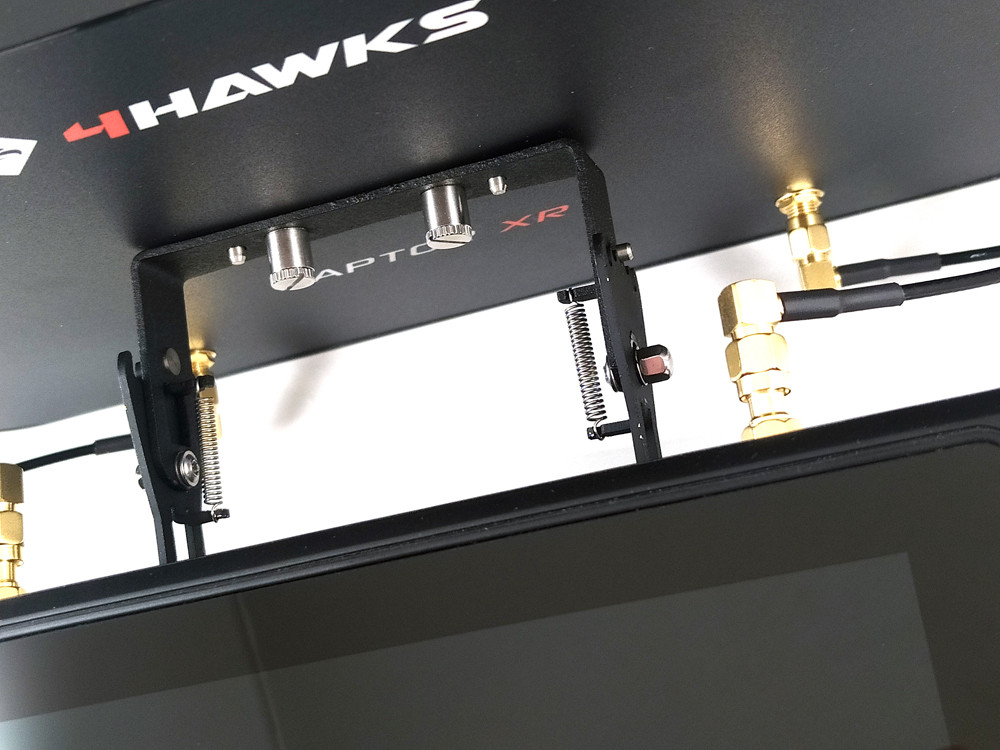

    Tilt adjustment 5 tilt positions, OnClick system
    Mounting type

    ON SMA CONNECTORS (PERMANENT)



    *Product Liability Disclaimer* This product is an aftermarket antenna system, designed for modifying the original OEM product antenna on the RC Ground Station Controller. When using this antenna, some custom modification to the RC Ground Station Controller may be required, and the working knowledge of basic tools is recommended. SkyDronesUSA, LLC shall not be held liable or responsible for any damages of any kind that may occur during or after installation of this aftermarket antenna to the RC Ground Station Controller. By making purchase of this item, you are acknowledging and accepting the terms of this Product Liability Disclaimer.
