    4Hawks Raptor SR & XR Antenna for DJI RC Plus Controller | Matrice 30/30T | Matrice 300/350 | Agrus T25/T40/T50

    ×

    Sorry this item is currently out of stock

    ×
    Brand:
    4Hawks
    Price:
    $149.00
    SKU:
    A139S
    Availability:
    Usually Ships Within 1 Business Day
    Shipping:
    Calculated at checkout
    Description
    Specifications
    Product Videos
    Specifications
    Reviews
    Related Products
    Also Viewed
    By Category

    • Product Description

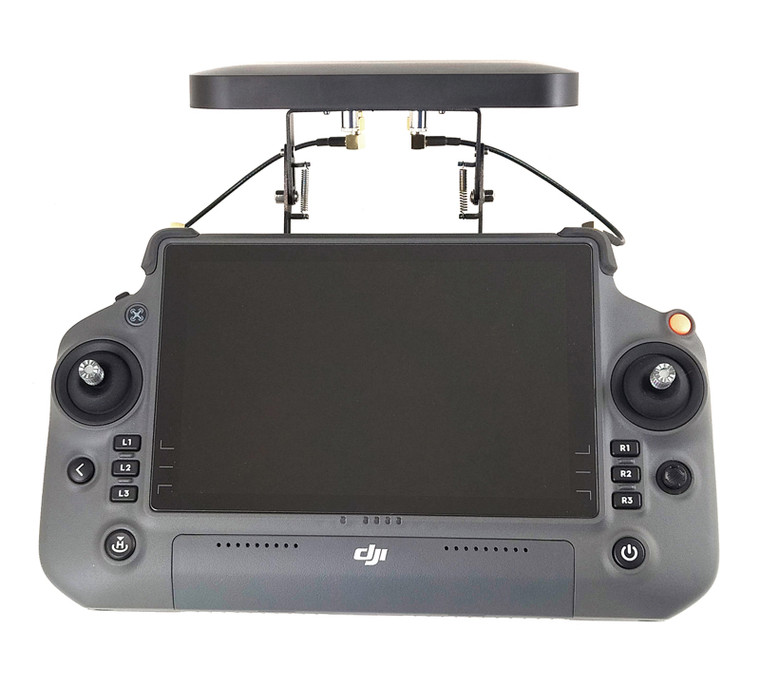

      4Hawks Raptor SR & XR for DJI RC Plus Controller

      Matrice 30/30T | Matrice 300/350 | Agrus T25/T40/T50

      FEATURES
      • Maximize performance
      • Concurrent dual band 2.4 & 5GHz
      • No modification to the drone itself
      • Long range extension without external boosters
      • Design does not contain any removable parts
      • Complete solution
      • Controller NOT included


      • Compatible With:
        • DJI Matrice 30
        • DJI Matrice 30T
        • DJI Matrice 300 RTK
        • DJI Matrice 350 RTK
        • DJI Agrus T25 | T40 |T50

      SPECIFICATIONS  SR Series



      Electrical parameters
      Frequencies Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
      Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
      Gain Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
      Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
      VSWR Port 1:   < 1.50  (max. < 2.15)
      Port 2:   < 1.50  (max. < 2.15)
      Beamwidth Port 1:   90°/65° & 55°/55°
      Port 2:   90°/65° & 55°/55°
      Polarization Port 1:   Vertical
      Port 2:   Vertical
      Impedance Port 1:   50 Ω
      Port 2:   50 Ω



      Mechanical parameters
      Material Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
      Mounting:   Stainless steel + paint
      Weight ~ 180g (110g Antenna + 70g Mounting)
      Dimensions 16.1 x 9.1 x 1.7 cm
      6.34 x 3.60 x 0.67 inch
      Connection Port 1:   RP-SMA female
      Port 2:   RP-SMA female
      Tilt adjustment 5 tilt positions, OnClick system





      SPECIFICATIONS XR Series



      Electrical parameters
      Frequencies Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
      Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
      Gain Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
      Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
      VSWR Port 1:   < 1.50  (max. < 2.15)
      Port 2:   < 1.50  (max. < 2.15)
      Beamwidth Port 1:   70°/40° & 40°/25°
      Port 2:   70°/40° & 40°/25°
      Polarization Port 1:   Vertical
      Port 2:   Vertical
      Impedance Port 1:   50 Ω
      Port 2:   50 Ω



      Mechanical parameters
      Material Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
      Mounting:   Stainless steel + paint
      Weight ~ 520g (450g Antenna + 70g Mounting)
      Dimensions 29.2 x 18.2 x 2.1 cm
      11.50 x 7.16 x 0.83 inch
      Connection Port 1:   RP-SMA female
      Port 2:   RP-SMA female
      Tilt adjustment 5 tilt positions, OnClick system
