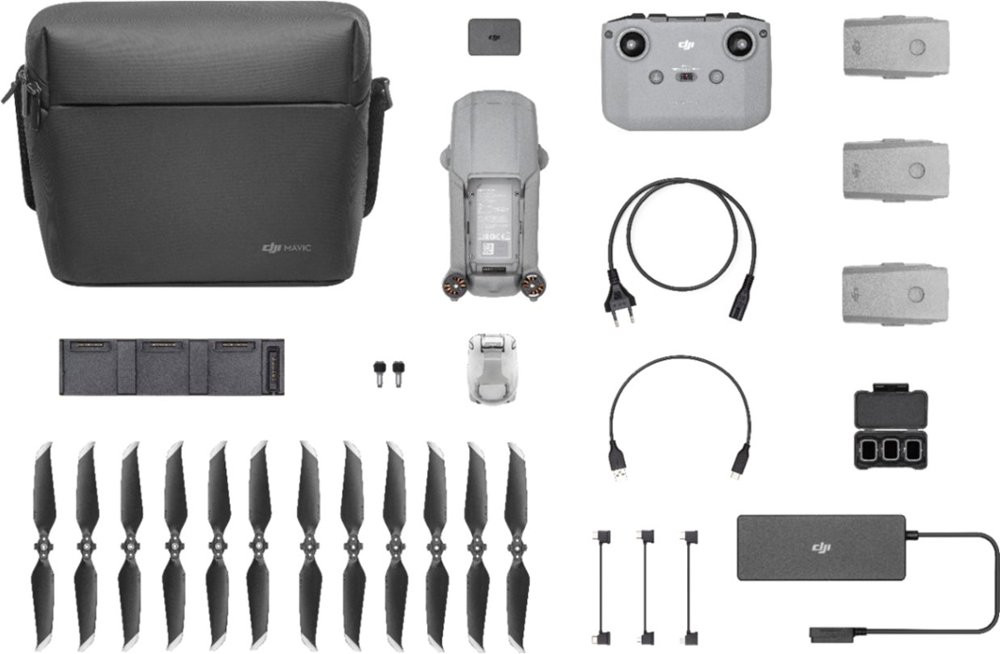

DJI Mavic Air 2 Series Drone Fly More Combo with 3 Batteries

 DJI Mavic Air 2 Series Drone Fly More Combo with 3 Batteries

Specs

 Aircraft

WEIGHT

570 g

SIZE

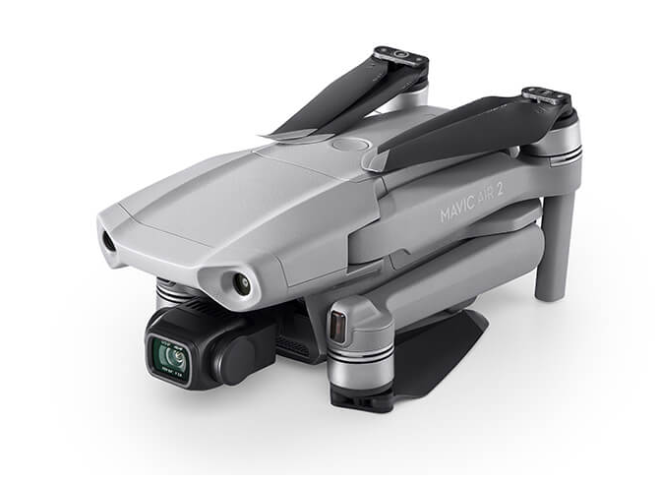

Folded:
180×97×84 mm (Length×Width×Height)
Unfolded:
183×253×77 mm (Length×Width×Height)

DIAGONAL DISTANCE

302 mm

MAX ASCENT SPEED

4 m/s (S Mode)
4 m/s (N Mode)

MAX DESCENT SPEED

3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode during a sharp descent)
3 m/s (all modes at elevations over 4500 m)

MAX SERVICE CEILING ABOVE SEA LEVEL

5000 m

MAX FLIGHT TIME (WITHOUT WIND)

34 minutes

MAX HOVER TIME (WITHOUT WIND)

33 minutes

MAX FLIGHT DISTANCE

18.5 km

MAX HORIZONTAL FLIGHT SPEED

19 m/s (S Mode)
12 m/s (N Mode)
5 m/s (T Mode)

MAX WIND RESISTANCE

8.5-10.5 m/s (Level 5)

MAX TILT ANGLE

35° (S Mode)
20° (N Mode)
35° (N Mode under strong wind)

MAX ANGULAR VELOCITY

250°/s (S Mode)
250°/s (N Mode)

OPERATING TEMPERATURE RANGE

-10° to 40°C (14° to 104°F)

OPERATING FREQUENCY

2.400-2.4835 GHz
5.725-5.850 GHz

TRANSMITTER POWER (EIRP)

2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm

5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

HOVERING ACCURACY RANGE

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)

Horizontal:
±0.1 m (with vision positioning)
±1.5 m (with GPS positioning)

PROPELLERS

Quick release, low noise, folding

SATELLITE SYSTEMS

GPS+GLONASS

COMPASS

Single Compass

IMU

Single IMU

INTERNAL STORAGE

8 GB

BATTERY

CAPACITY

3500 mAh

VOLTAGE

11.55 V

CHARGING VOLTAGE LIMIT

13.2 V

BATTERY TYPE

LiPo 3S

ENERGY

40.42 Wh

WEIGHT

198 g

CHARGING TEMPERATURE

5° to 40°C (41° to 104°F)

MAX CHARGING POWER

38 W

CAMERA

SENSOR

1/2" CMOS
Effective Pixels: 12 MP and 48 MP

LENS

FOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8
Focus Range: 1 m to ∞

ISO

Video:
100-6400

Photo (12 MP):
100-3200 (Auto)
100-6400 (Manual)
Photo (48 MP):
100-1600 (Auto)
100-3200 (Manual)

MAX PHOTO RESOLUTION

48 MP 8000×6000 pixel

PHOTO MODES

Single: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR
HDR Panorama:
Vertical (3×1): 3328×8000 pixels (Width×Height)
Wide (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height)

PHOTO FORMATS

JPEG/DNG (RAW)

VIDEO RESOLUTION AND FRAME RATES

4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps

COLOR PROFILES

D-Cinelike, Normal

VIDEO FORMATS

MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

MAX BITRATE

120 Mbps

SUPPORTED SD CARDS

Supports a microSD with capacity of up to 256 GB

SUPPORTED FILE SYSTEMS

FAT32 and exFAT

ZOOM

Not available

GIMBAL

STABILIZATION

3-axis (tilt, roll, pan)

MECHANICAL RANGE

Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°

CONTROLLABLE RANGE

Tilt: -90° to 0° (Default)
-90° to 24° (Extended)

MAX CONTROLLABLE SPEED (TILT)

100°/s

ANGULAR VIBRATION RANGE

±0.01°

VISION SYSTEM

FORWARD

Precision Measurement Range: 0.35-22.0 m
Detection Range: 0.35 to 44 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
71° (horizontal), 56° (vertical)

BACKWARD

Precision Measurement Range: 0.37-23.6 m
Detection Range: 0.37-47.2 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
44° (horizontal), 57° (vertical)

AVAILABLE DOWNWARD SENSORS

Dual Vision Sensors + Time of Flight Sensors (ToF)

DOWNWARD

ToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m

LEFT/RIGHT

None

DOWNWARD AUXILLARY LIGHT

Single LED

SAFETY

OBSTACLE AVOIDANCE SYSTEM

Advanced Pilot Assistance Systems (APAS) 3.0

VIDEO TRANSMISSION

TRANSMISSION SYSTEM

OcuSync 2.0
2.4 GHz/5.8 GHz Auto-Switching

MAX TRANSMISSION DISTANCE

10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

LIVE VIEW QUALITY

720p@30fps/1080@p30fps

LATENCY (DEPENDING ON ENVIRONMENTAL CONDITIONS AND MOBILE DEVICE)

120-130 ms

VIDEO TRANSMISSION ENCODING FORMAT

H.265

MAX LIVE VIEW BITRATE

40 Mbps

OPERATING FREQUENCY

2.400-2.4835 GHz
5.725-5.850 GHz

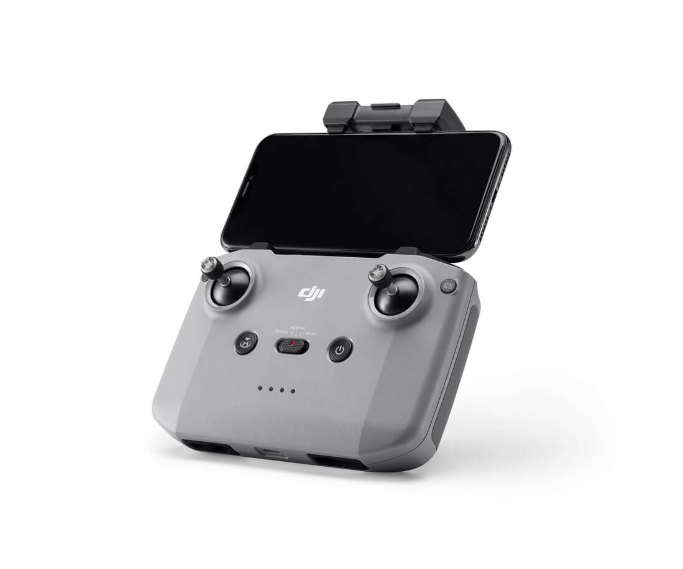

REMOTE CONTROLLER

REMOTE CONTROLLER TRANSMISSION SYSTEM

OcuSync 2.0

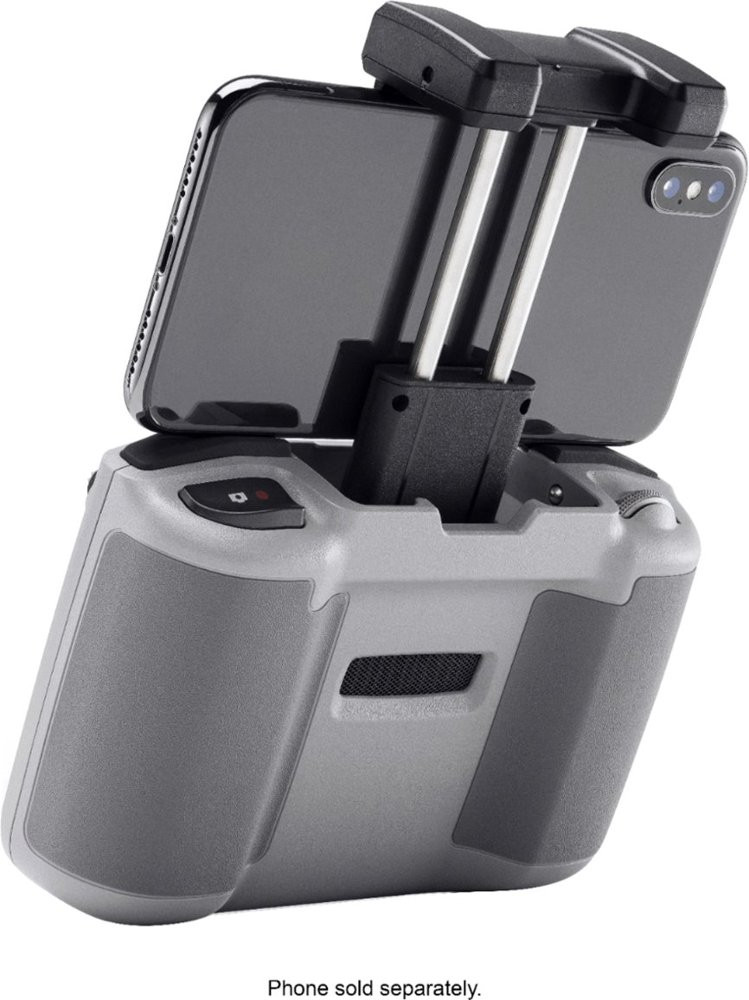

SUPPORTED MOBILE DEVICE CONNECTORS

Lightning, Micro USB, USB Type-C

MAX. SUPPORTED MOBILE DEVICE SIZE

180×86×10 mm (Height×Width×Thickness)

OPERATING TEMPERATURE

-10° to 40°C (14° to 104°F)

TRANSMITTER POWER (EIRP)

2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm

5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

OPERATING CURRENT/VOLTAGE

1200 mA@3.7V (Android)
700 mA@ 3.7 V (iOS)

CHARGER

CHARGING INPUT

100-240 V, 50/60 Hz, 1.3 A

CHARGING OUTPUT

Charging Port: 13.2 V⎓2.82 A
USB Port: 5 V⎓2 A

VOLTAGE

13.2 V

RATED POWER

38 W
