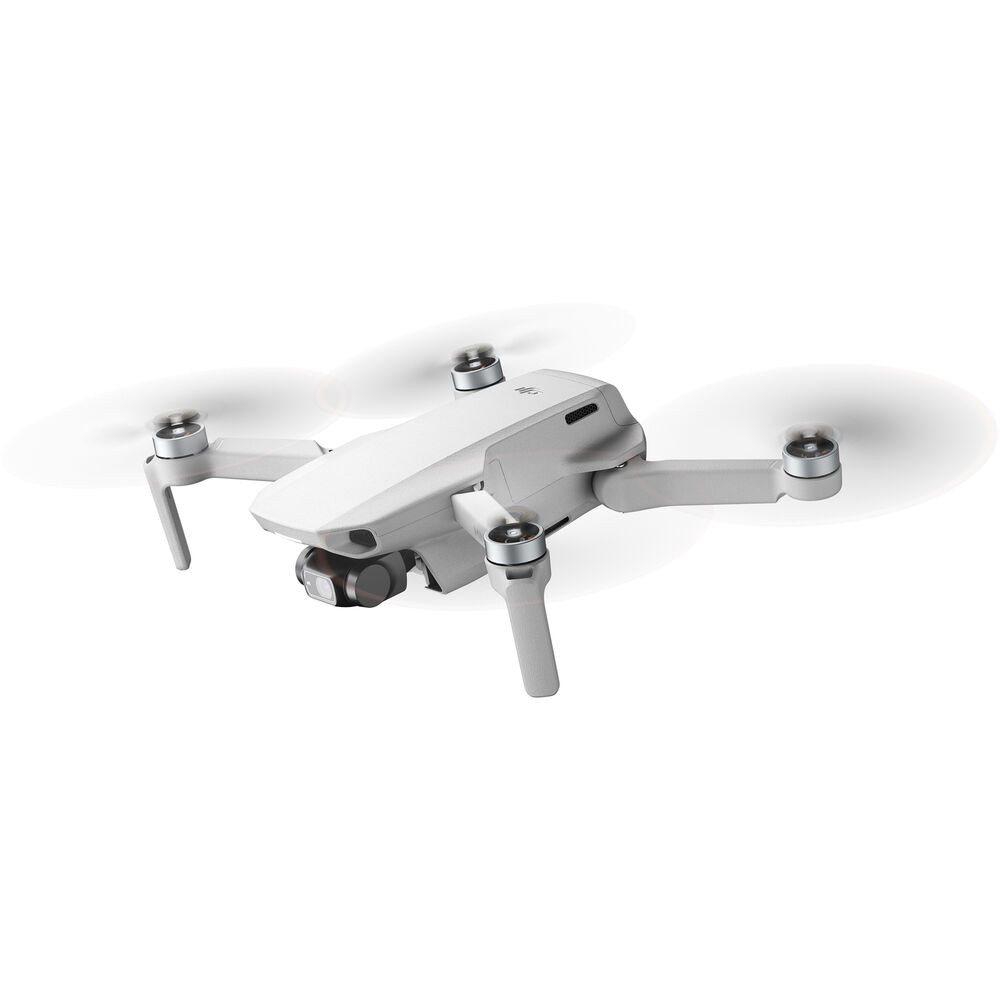

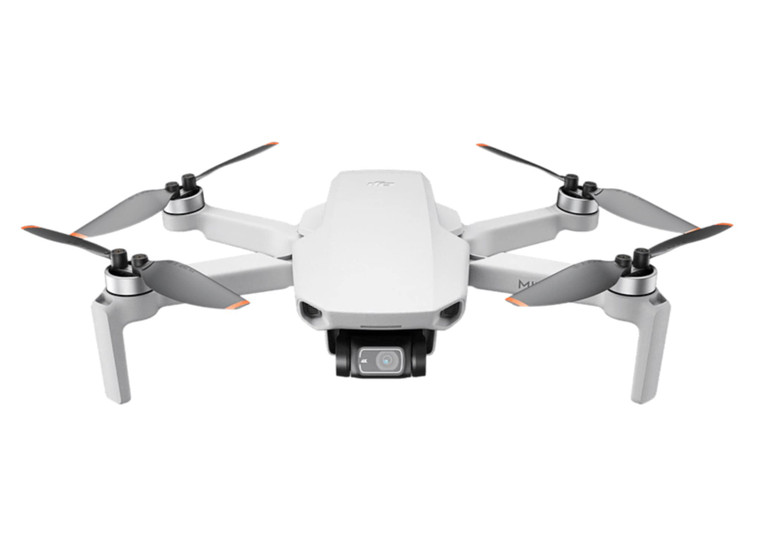

DJI Mini 2 Drone | Fly More Combo with 3 batteries

DJI Mini 2 Drone | Fly More Combo with 3 Batteries

Technical Specs

Aircraft

Takeoff Weight [1]

< 249 g

Dimensions

Folded: 138×81×58 mm (L×W×H)
Unfolded: 159×203×56 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)

Diagonal Distance

213 mm

Max Ascent Speed

5 m/s (S Mode)
3 m/s (N Mode)
2 m/s (C Mode)

Max Descent Speed

3.5 m/s (S Mode)
3 m/s (N Mode)
1.5 m/s (C Mode)

Max Speed (near sea level, no wind)

16 m/s (S Mode)
10 m/s (N Mode)
6 m/s (C Mode)

Max Service Ceiling Above Sea Level

4000 m
(2000 m when taking off with propeller guard)

Max Flight Time

31 mins (measured while flying at 4.7 m/s in windless conditions)

Max Wind Speed Resistance

8.5-10.5 m/s (Scale 5)

Max Tilt Angle

40° (S Mode)
25° (N Mode)*
25° (C Mode)*
* Up to 40° under strong winds

Max Angular Velocity (by default)*

130°/s (S Mode)
60°/s (N Mode)
30°/s (C Mode)
* Can be adjusted to 250°/s with the DJI Fly app

Operating Temperature

0° to 40°C (32° to 104°F)

Operating Frequency [2]

2.400-2.4835 GHz, 5.725-5.850 GHz

Transmitter Power (EIRP)

2.400-2.4835 GHz
FCC ≤ 26 dBm
CE ≤ 20 dBm
SRRC ≤ 20 dBm
5.725-5.850 GHz
FCC ≤ 26 dBm
CE ≤ 14 dBm
SRRC ≤ 26 dBm

Global Navigation Satellite System (GNSS)

GPS+GLONASS+GALILEO

Hovering Accuracy Range

Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Mechanical Range

Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°

Controllable Range

Tilt: -90° to 0° (default setting) -90° to +20° (extended)

Stabilization

3-axis (tilt, roll, pan)

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Sensing System

Downward

Hovering Range: 0.5-10 m

Operating Environment

Non-reflective, discernable surfaces
Diffuse reflectivity (> 20%,such as cement pavement)
Adequate lighting (lux > 15, Normal exposure environment of indoor fluorescent lamp)

Camera

Sensor

1/2.3” CMOS
Effective Pixels: 12 MP

Lens

FOV: 83°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus range: 1 m to ∞

ISO

Video:
100-3200 (Auto)
100-3200 (Manual)
Photos:
100-3200 (Auto)
100-3200 (Manual)

Shutter Speed

Electronic Shutter: 4-1/8000 s

Max Image Size

4:3: 4000×3000
16:9: 4000×2250

Still Photography Modes

Single Shot
Interval: JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG+RAW: 5/7/10/15/20/30/60 s
Auto Exposure Bracketing (AEB): 3 bracketed frames at 2/3 EV Bias
Panorama: Sphere, 180°, and Wide

Video Resolution

4K: 3840×2160 @ 24/25/30fps
2.7K: 2720×1530 @ 24/25/30fps
FHD: 1920×1080 @ 24/25/30/48/50/60fps

Max Video Bitrate

100 Mbps

Zoom Range

4K: 2x
2.7K: 3x
FHD: 4x

QuickShot Modes

Dronie,
Helix,
Rocket,
Circle,
Boomerang

Supported File Formats

FAT32 (≤ 32 GB)
exFAT (> 32 GB)

Photo Formats

JPEG/DNG (RAW)

Video Formats

MP4 (H.264/MPEG-4 AVC）

Remote Controller & Video Transmission

Operating Frequency

2.400-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference) [3]

10 km (FCC)
6 km (CE)
6 km (SRRC)
6 km (MIC)

Signal Transmission Ranges (FCC) [4]

Strong Interference (urban landscape, limited line of sight, many competing signals): Approx. 3 km
Medium Interference (suburban landscape, open line of sight, some competing signals): Approx. 6 km
Low Interference (open landscape abundant line of sight, few competing signals): Approx. 10 km

Operating Temperature

10° to 40° C (14° to 104° F)

Transmission Power (EIRP)

2.400-2.4835 GHz
FCC ≤ 26 dBm
CE ≤ 20 dBm
SRRC ≤ 20 dBm
MIC ≤ 20 dBm
5.725-5.850 GHz
FCC ≤ 26 dBm
CE ≤ 14 dBm
SRRC ≤ 26 dBm

Battery Capacity

5200 mAh

Voltage

1200 mA 3.7 V (Android)
700 mA 3.7 V (iOS)

Supported Mobile Device Size

Max length: 92 mm

Supported USB Port Types

LightningMicro USB (Type-B) USB-C

Video Transmission System

OcuSync 2.0

Live View Quality

Remote Controller: 720p/30fps

Max Bitrate

8 Mbps

Latency (depending on environmental conditions and mobile device)

About 200 ms

Charger

Input

100-240 V, 50/60 Hz, 0.5 A

Output

12V 1.5 A / 9V 2A / 5V 3A

Rated Power

18 W

Intelligent Flight Battery

Battery Capacity

2250 mAh

Voltage

7.7 V

Charging Voltage Limit

8.8 V

Battery Type

LiPo 2S

Energy

17.32 Wh

Weight

86.2 g

Charging Temperature

5° to 40°C (41° to 104°F)

Max Charging Power

29 W

App

Name

DJI Fly

Required Operating System

iOS v10.0 or laterAndroid v6.0 or later

Supported SD Cards

Supported SD Cards

UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below.

Recommended microSD Cards

16 GB: SanDisk Extreme
32 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Industrial, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, SanDisk Extreme Pro V30 A1, SanDisk Extreme Pro V30 A2, Lexar 633x, Lexar 667x
64 GB: Samsung Pro Endurance, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
128 GB: Samsung Pro Plus, Samsung Evo Plus, SanDisk Extreme V30 A1, SanDisk Extreme V30 A2, SanDisk Extreme Plus V30 A1, SanDisk Extreme Plus V30 A2, Lexar 633x, Lexar 667x, Lexar 1000x, Lexar High Endurance, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1
256 GB: SanDisk Extreme V30 A1, SanDisk Extreme V30 A2

Footnotes

Footnotes

1. The standard weight of the aircraft (including battery, propellers, and a microSD card) is 242 grams. Actual poduct weight may vary. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
2. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
3. Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions;
SRRC: Mainland China;
CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;
MIC: Japan.
4. Data is tested under different standards in open areas free of interference. It only refers to the maximum, one-way flight distance without considering Return to Home. Please pay attention to RTH prompts in the DJI Fly app during actual flight.

The Fly More Combo includes 1x Aircraft, 1x Remote Control, Total of 3 Flight Batteries, Shoulder Bag, Screwdriver, Two Way Charger Hub, 3x spare propellers,

Spare Control Sticks (Pair), 1x USB-C communication cable, 1x RC cable (Micro-USB connector), 1x RC cable (Lightning connector), 1x RC cable (USB connector) C)
