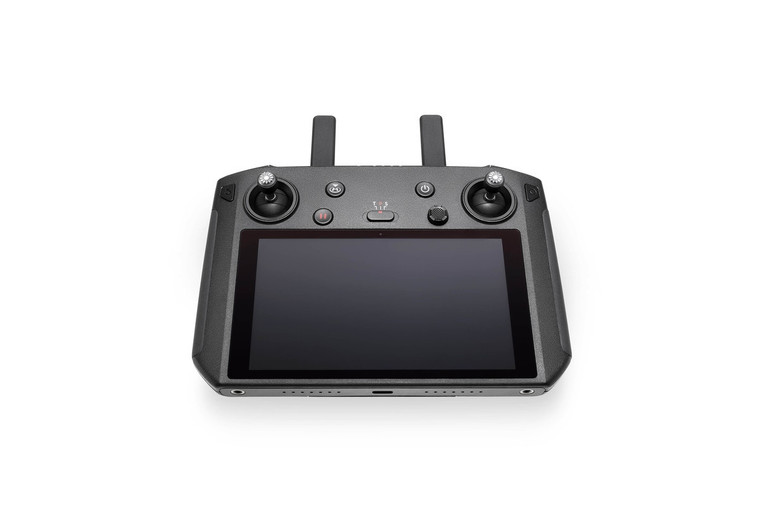

DJI Smart Controller with 5.5" 1080p Screen

DJI Smart Controller with 5.5" 1080p Screen

DJI

SKU:

CP.MA.00000080.01

UPC:

190021324893

Availability:

Usually Ships Within 1 Business Day

$749.00

(No reviews yet) Write a Review

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.[1] A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App , DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before.

*Compatible with DJI Mini 2, DJI Air 2S, Mavic Air 2, Mavic 2 Zoom, Mavic 2 Pro, Mavic 2 Enterprise Series, Mavic 2 Enterprise Advanced, and Phantom 4 Pro V2.0.

Built-in Ultra-Bright Screen

The DJI Smart Controller has a built-in 5.5-inch 1080p screen, providing an ultra-bright display to keep your live feed easily viewable, even in direct sunlight. At 1000 cd/m, the display is approximately twice as bright as conventional smart device screens.

OcuSync 2.0 Full-HD Video Transmission

Equipped with OcuSync 2.0 Full-HD video transmission technology, the DJI Smart Controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drone operation and image quality. This also ensures reliable long-range transmission at distances of up to of 8 km. 2

Efficient and Portable

The DJI Smart Controller connects to your drone as soon as it’s powered on, letting you take off in no time and never miss a moment of the action. Featuring an integrated design with detachable control sticks, the DJI Smart Controller is also portable enough to bring with you anywhere.

Reliable in More Environments

The DJI Smart Controller is capable of stable operation in temperatures ranging from -20°C to 40°C, giving you reliable, HD connection with your drone in more places.

Go Share

Easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI GO 4 app’s new Go Share function.

Customized System

The DJI Smart Controller's customized Android system and optimized DJI GO 4 app give you freedom from the restraints of conventional mobile devices to ensure faster, focused aerial creation. The Smart Controller also supports third-party apps for a variety of additional sharing and editing options.

Excellent Audio and Video Performance

With a built-in microphone and speaker, the DJI Smart Controller can playback videos through the HDMI port at 4K 60fps on the H.264 and H.265 codecs.

More Features

SkyTalk

The new SkyTalk feature is an amazing way to let others in on your aerial experience. Use it to live-stream your drone’s camera view directly to social media platforms like Facebook and Instagram. It also allows you to create and share short videos instantly.

Long-Lasting Battery Life

The 5000mAh battery supports quick charging and can work continuously for up to 2.5 hours.

Specs

OcuSync 2.0

Operation Frequency Range
2.400-2.4835 GHz, 5.725-5.850 GHz[1]

Max Transmission Distance (unobstructed, free of interference)
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Transmitter Power (EIRP)
2.400-2.4835 GHz:
25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC)
5.725-5.850 GHz:
25.5 dBm (FCC), 12.5 dBm (CE), 18.5 dBm (SRRC)

Wi-Fi

Protocol
Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported

Operation Frequency Range
2.400-2.4835 GHz, 5.150-5.250 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)
2.400-2.4835 GHz:
21.5 dBm (FCC), 18.5 dBm (CE)
18.5 dBm (SRRC), 20.5 dBm (MIC)
5.150-5.250 GHz:
19 dBm (FCC), 19 dBm (CE)
19 dBm (SRRC), 19 dBm (MIC)
5.725-5.850 GHz:
21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC)

Bluetooth

Protocol
Bluetooth 4.2

Operation Frequency Range
2.400-2.4835 GHz

Transmitter Power (EIRP)
4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC)

General

Battery
18650 Li-ion (5000 mAh @ 7.2 V)

Charge Type
Supports USB power adapters rated 12 V/2 A

Rated Power
15 W

Storage Capacity
ROM 16 GB + scalable (microSD)

Charging Time
2 hours (using a USB power adapter rated 12 V/2 A)

Working Time
2.5 hours

Video Output Port
HDMI Port

Power Supply Current / Voltage (USB-A port)
5 V/ 900 mA

Operation Temperature Range
-4° to 104° F (-20° to 40° C)

Storage Temperature Range
<1 month: -22° to 140° F (-30° to 60° C)
1-3 months: -22° to 113° F (-30° to 45° C)
3-6 months: -22° to 95° F (-30° to 35° C)
>6 months: -22° to 77° F (-30° to 25° C)

Charging Temperature Range
41° to 104° F (5° to 40° C)

Supported Aircraft Models[2]
Please visit the official website for the latest information.

GNSS
GPS+GLONASS

Dimensions
177.5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted)
177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted)

Weight
Approx. 630 g

Model
RM500

Supported SD Cards

Supported SD Cards
microSD™
Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3

Footnotes

Footnotes
1. Local regulations in some countries prohibit the use of the 5.8 GHz and 5.2 GHz frequencies. In some regions, the 5.2 GHz frequency band is only allowed for indoor use.
2. The Smart Controller will support more DJI aircraft models in the future. Please visit the official website for the latest information.
