Parrot ANAFI Thermal Drone (PF728120AA)

Parrot ANAFI Thermal Drone

×
×
Brand:
Price:
$1,900.00
SKU:
PF728120AA
Availability:
Usually Ships Within 1 Business Day
Shipping:
Calculated at checkout
Quantity:
Description
Specifications
Reviews
Related Products
Product Videos
Warranty
Also Viewed
By Category
  • Product Description



    DUAL THERMAL AND VISIBLE IMAGERY

    TWO INTEGRATED SENSORS WORKING IN FULL SYNCHRONIZATION.




    ANAFI Thermal's unique camera integrates two high-quality sensors to
    capture both the invisible and the visible.

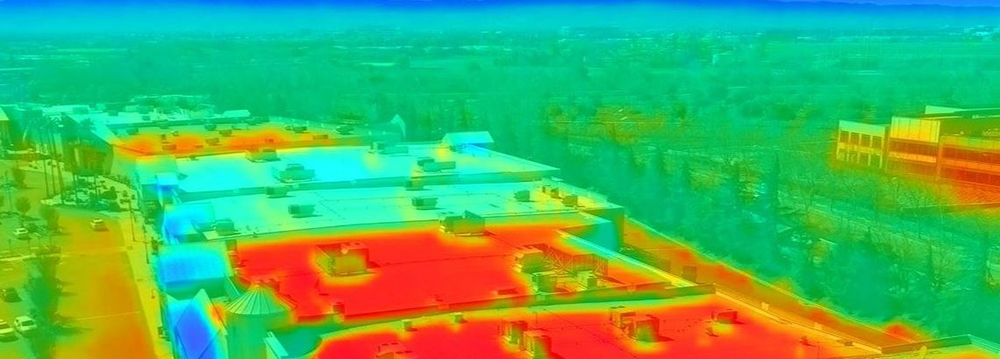

    A FLIR radiometric sensor for thermal images that reveals
    extreme temperatures, insulation voids, sources of cold
    and warm air leaks, signs of moisture damage.

    • FLIR Lepton 3.5 microbolometer sensor (radiometric)
    • Sensor resolution: 160x120
    • Temperature range : -10°C to +140°C (High-gain) or
    • -10°C to 400°C (Low-gain)
    • Thermal sensitivity: <50mK

    Sony sensor specifically designed for visual inspection,
    RGB data capture for photogrammetry or scouting and
    reconnaissance.

    • Sony CMOS sensor 1/2.4'' 21MP
    • 4K HDR video recording capabilities
    • Adobe DNG/RAW and P-LOG professional formats

    A unique camera system specific to ANAFI:

    • 3-axis hybrid stabilization (2-axis mechanical combined
    • with 3-axis electronic)
    • Controllable tilt: +/-90° (from zenith to nadir views)
    • Up to x3 digital zoom (in thermal and visible views)

    ANAFI Thermal boasts optimized performances in an ultra-portable design.

    Ultra-portable design:

    • Lightweight (315g only), ultra-compact yet robust carbon-reinforced drone design
    • Fast and easy to unfold drone for ultra quick set-up
    • Easy-to-carry solution in its compact shoulder bag which fits smartphones or tablets
    • All-in-one: everything you need in one solution

    Optimized performances:

    • Up to 26 minutes flight time per Smart Battery (3 smart batteries included)
    • USB-C on-the-go charging system (compatible with Powerbanks)
    • Multi-port USB charger to charge all 3 batteries together in 3h30
    • Perfect stability against winds of up to 50 km/h
    • Quiet flights

    ANAFI Thermal is easy-to-use with the FreeFlight 6 mobile app,
    available on iOS and Android systems, tablets and smartphones.


    Smooth and intuitive flight experience:

    • Intuitive manual flight with FreeFlight 6 mobile app to perform
      intricate flights in difficult areas, stress free
    • Easy dual-use of thermal and visible views in one
      app on one screen (switching from one view to
      another is a just a tap away)

    Automated flights for precise RGB and thermal data capture:

    • Automatic scouting with FlightPlan: autonomous flight made easier (to capture either thermal or RGB images)
    • Compatible with Pix4Dcapture for optimal automatic RGB data acquisition (appropriate for photogrammetry)

    Direct in-app analysis of thermal images:

    • In-app customized and customizable color palettes:
      Absolute: color scale from -10°C to 140°C in high-gain or
      -10°C to 400°C in low-gain (customizable)

      Relative: Automatic color rescaling from the minimum to the
      maximum temperatures of the scene

      Spot: highlights the highest or lowest temperatures of the
      scene (customizable)
    • Temperature of each point thanks to the radiometric
      capability of the FLIR thermal sensor
    • Min and max temperature of each scene, always on the
      screen for better awareness of the scene

     In The Box

    • 1 ANAFI Thermal drone
    • 1 Parrot Skycontroller 3
    • 3 Smart batteries
    • 1 Shoulder bag
    • 1 Multiple-port USB charger

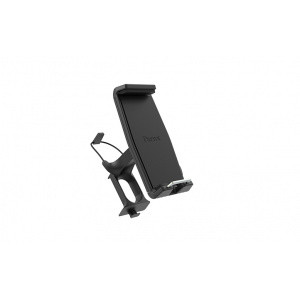

    • 1 Tablet Holder
    • 8 Additionnal propeller blades
    • 1 16GB microSD card
    • 4 USB-A / USB-C cables







    ENERGY INFRASTRUCTURE MAINTENANCE

    Using a light and easy to implement solution, energy suppliers can identify failures on power lines, or isolate a defective solar panel in just a few minutes.


    BUILDING INDUSTRY

    Construction professionals can perform building diagnosis, identify thermal losses or insulation voids and collect thermal data. Using a drone is a highly-efficient, cost-effective and safe solution


    SECURITY / OPERATION MONITORING

    Civil security agents can remotely identify hot spots and decide where to act in priority. After their intervention, they can monitor the scene and decide to keep a team on site. Using 4K or thermal images, searching for people in isolated area is now faster, and does not endanger emergency services agents.



    TECHNICAL SPECIFICATIONS

    ANAFI THERMAL DRONE

        • Weight: 315 g
        • Maximum transmission distance: 4km with the Parrot Skycontroller 3
        • Maximum flight time: 26min
        • Maximum horizontal speed: 34mph
        • Maximum vertical speed: 4m/s
        • Maximum wind resistance: 31mph
        • Maximum working altitude: 4,500m above sea level
        • Operating temperature: from -10°C to 40°C
      • DIMENSIONS :

        • Folded: 218x69x64mm
        • Unfolded: 241x315x64mm
      • SENSORS :

        • GNSS: GPS + GLONASS
        • Barometer and magnetometer
        • Vertical camera and ultrasound sensor
        • 2x6-axis IMU
        • 2x3-axes accelerometer
        • 2x3-axes gyroscope

    IMAGING SYSTEM

        • Sensor: CMOS 1/2.4", 21MP
        • Video format: MP4 (H264)
        • HDR: 4K UHD, 2.7K et 1080p videos, JPEG photos
        • Photo formats: JPEG, DNG(RAW)
        • Photo modes: single, burst, bracketing, timer and panorama
        • Shutter speed: from 1 to 1/10000s
        • ISO: from 100 to 3200
        • EV compensation: [-3, +3]
        • Maximum video sampling rate: 100Mbps
      • LD-ASPH LENS :

        • f/2.4 aperture
        • Depth of focus: 26mm (35mm equivalent)
        • Depth of field: 1.5m to infinity
      • DIGITAL ZOOM :

        • Lossless: up to x2.8 (FHD), up to x1.9 (2.7K), up to x1.4 (4K UHD)
        • Standard: up to x3 (all resolutions)
      • PHOTO RESOLUTION :

        • Wide angle: 21MP (5344x4016) / 4:3 / 84° HFOV
        • Rectilinear: 16MP (4608x3456) / 4:3 / 75.5° HFOV
      • VIDEO RESOLUTION :

        • 4K Cinema (4096x2160 24fps)
        • 4K UHD (3840x2160 24/25/30fps)
        • FHD (1920x1080 24/25/30/48/50/60fps)
        • HD (1280x720 48/50/60fps)
        • HFOV video: 69°
      • THERMAL-IMAGING CAMERA :

        • Sensor: FLIR Lepton 3.5 microbolometer (radiometric)
        • Sensor resolution: 160x120
        • HFOV: 57°
        • Pixel pitch: 12µm
        • Spectral band: 8-14µm
        • Thermal sensitivity: <50mK (0.050°C)
        • Photo format: JPEG
        • Photo resolution: 3264x2448 (4/3)
        • Photo modes: Single / Time-lapse / GPS Lapse
        • Video format: MP4 (H264)
        • Video recording resolution: 1440x1080, 9fps
        • Precision: ±5% max.(High-gain) or ±10% max.(Low-gain)
        • Scene Dynamic Range: -10° to +140°C (High-gain) or -10° to +400°C (Low-gain)
        • Video: MP4

    PARROT SKYCONTROLLER 3

        • Folded size: 94x152x72mm
        • Unfolded size: 153x152x116mm
        • Weight: 283g
        • Transmission system: Wi-Fi 802.11a/b/g/n
        • Operating frequency: 2.4 - 5.8 GHz
        • Max. transmission distance. : 4km
        • Resolution of the video return: HD 720p
        • Battery capacity: 2500 mAh 3.6V
        • Battery life: 2h30 (Android) / 5h30 (iOS)
        • Compatible mobile devices: Screen size up to 10"
        • USB ports: USB-C (Charge), USB-A (Connection)





    •

    •

    •
