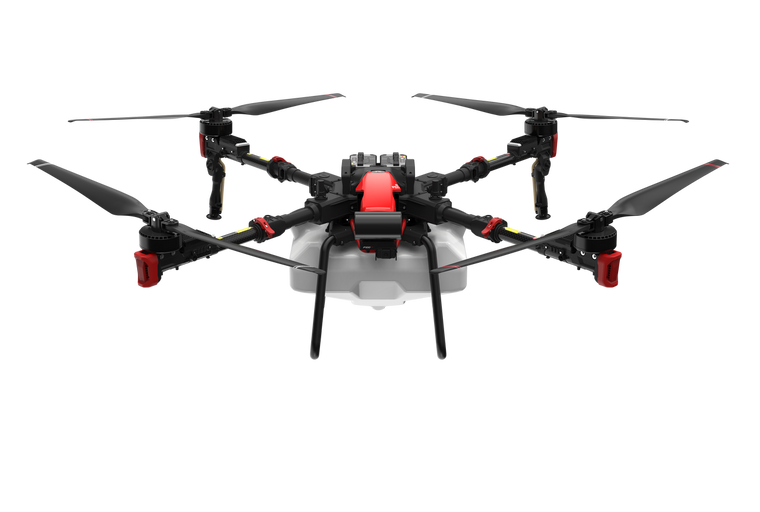

The XAG P100 PRO Spraying, Seeding & Mapping Drone
70 Acres per Hour | Capacity: 13.2 Gal (50L) | Spray Width: up to 33 ft (up to 10 meters) | Max Flow: 5.8 GPM (22LPM)

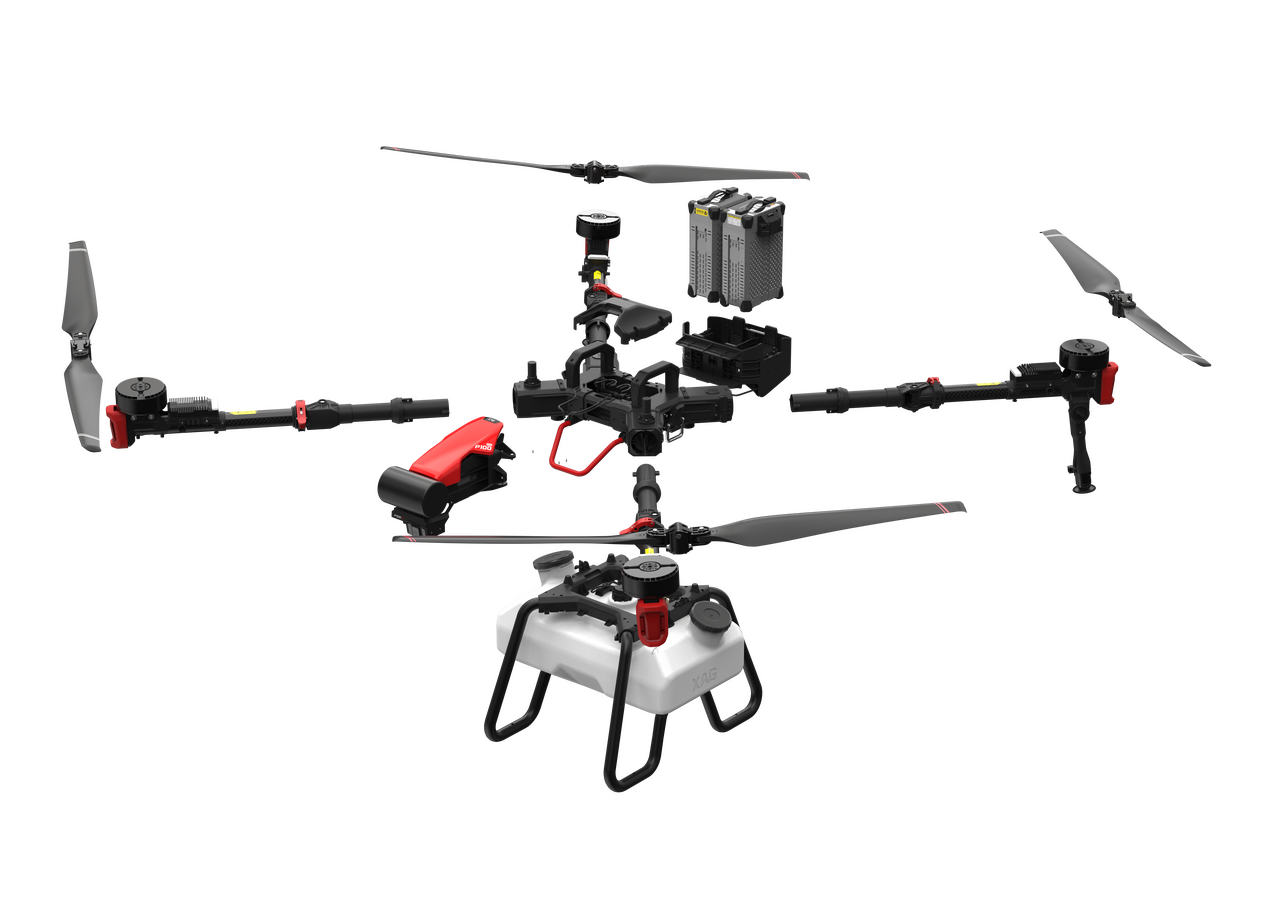

HOT-SWAP PAYLOADS | DUAL PUMP MEGA FLOW | PRECISE AND HYPER-FAST SPRAYING & SEEDING
13.2 gal Tank
Largest payload
5.8 gal/min Volume
Dual pump mega flow
70 acre/hour Efficiency
with 2 gal/acre rate
110 lbs Payload
Up to 21 gal volume spreader
Brand New 55" Blades
Power & Efficiency combined in these new motors
WHAT IN THE BOX:
(1) XAG P100 Pro Drone only
(1) RevoSpray P3 Sprayer base module
Dimensions
115 x 112.9 x 12.7 inch (2927 × 2868 × 323 mm) (blades extended)

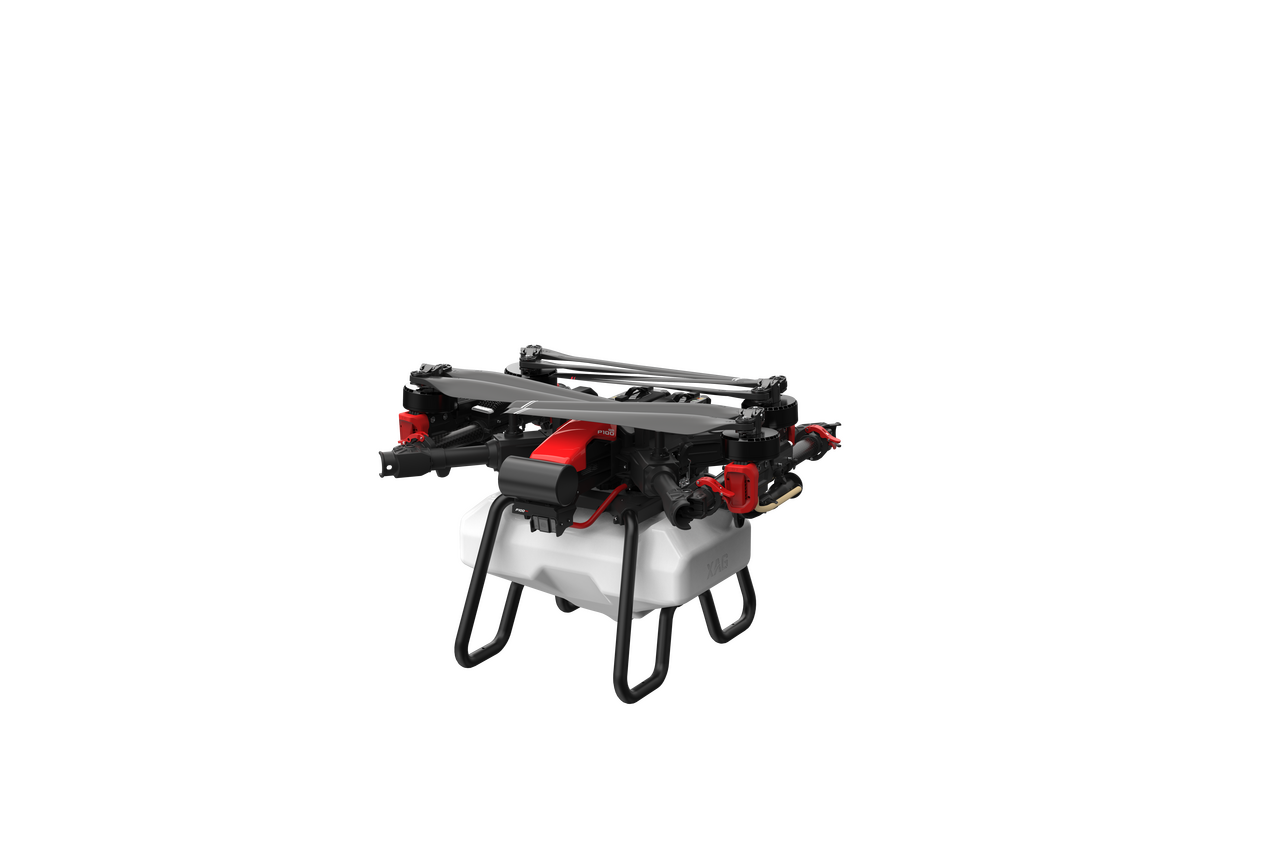

35 x 43.1 x 13.6 inch (893 × 1095 × 345 mm) (blade folded, arm folded)
Symmetrical motor wheelbase
82.4 inch (2094mm)
Degree of protection
IPX6K
Flight platform mass (including battery)
101 lbs (46 kg)
Arm tube material
Glass and carbon fiber composites
Rated load
110 lbs (50 kg)
Flight parameters
Sustained high-accuracy navigation time in case of RTK data delay
Limit RTK data delay within 600 seconds
Maximum flying speed
13.8 m/s
Hovering accuracy (good GNSS signal)
RTK Enabled: Horizontal ±10cm, Vertical ±10cm
Without RTK enabled: horizontal ±0.6m, vertical ±0.3m
Maximum take-off altitude
2000 meters (higher than 6,561 ft (2000 m) will affect the flight efficiency)
Recommended working environment temperature
0 ~ 40 degrees Celsius (0 – 104 °F)
Power system
Motor
Model
A50
Rated power (single motor)
4100 watts
Maximum pulling force (single motor)
115 lbs (52 kg)
ESC
model
VC13230
Maximum output current
230 Ann
Continuous output current
110 Ann
Collapsible propeller
Model
5515 propeller
Diameter × Pitch
55 x 15 inches (1397 x 381 mm)
XAG Revospray 3
Spray system size
29 x 28.9 x 19.6 inch (737 x 734 x 497 mm)
Tank rated capacity
13 gal (50 liters)
Tank load
110 lbs (50 kg)
Centrifugal atomizing nozzle
Quantity
2
Disc speed
1000 ~ 16000 rpm
Atomized particle size
60 ~ 400 microns (affected by spray flow, environment, etc.)
Spray pattern
5 ~ 10 meters (depending on flight speed, flight altitude, usage per mu, environment, etc.)
High frequency pulse peristaltic pump
Quantity
2
Maximum System Workflow
5.8 gal/min (22 l/min)
Voltage
50 volts
Single pump working flow
0.13 – 2.9 gal/min (0.5 ~ 11 L/min)
REVOCAST 3
Core Broadcast System Dimensions
41 x 28.7 x 25.6 inch (1059 x 728 x 651mm)
Smart bin
Rated capacity of material box
21 gal (80 liters)
Rated load of material box
110 lbs (50 kg)
Spiral variable feeder
Shipping container quantity
2
Maximum cutting quantity
330 lbs/min (150 kg/min) (measured in the laboratory using urea, the data is affected by factors such as particle size, shape, density, dry state)
Storage temperature
0 ~ 40 degrees Celsius (0 – 104 °F)
Maximum speed
410 rpm
Operating temperature
0 ~ 40 degrees Celsius (0 – 104 °F)
Spreading particle range
Particle diameter 0.03 – 0.2 inch (1 ~ 6 mm)
Centrifugal sowing disk
Number of broadcasts
2
Spread
3 ~ 7 meters (depending on flight height, seed weight, shape, amount per mu, environment, etc.)
Maximum speed
800 rpm
Image sensor
12 million pixels
Lens
Focal length 0.11 inch (2.7 mm)
Shutter mode
mechanical shutter
Image Format
JPEG
Power
10 watts
Recommended working temperature
10 ~ 45 degrees Celsius (50 – 113 °F)
Perception and obstacle avoidance system
4D Imaging Radar
Model
RD24912
Operating Voltage
24~60 volts
Power
12 watts
Working frequency
24 GHz
Perception style
4D millimeter wave imaging, multiple transmissions and multiple receptions
Perceptual parameters
Obstacle position, distance, direction of movement, relative speed
Range
1.5 ~ 80 meters
Field of View (FOV)
Horizontal: ±40°; Vertical: +90° ~ -45°
Safe obstacle avoidance relative to ground height
≥1.5 meters
Safe obstacle avoidance distance
2.5 meters
Safe obstacle avoidance relative speed
≤13.8 m/s
Ground-following radar
Model
TR24S100
Operating Voltage
12 volts
Power
1.5 watts
Perception style
millimeter wave
Working frequency
24 GHz
Height measurement range
0.5 ~ 100 meters (relative height from crop surface)
Fixed height range
1 ~ 30 meters (relative height from crop surface)
Maximum slope
45° (@flight speed ≤ 2 meters/second)
PSL pilot’s perspective image
Video resolution
1920 x 1080
Frame rate
30 frames per second
Image sensor
1/2.9-inch CMOS-RGB image sensor
Supply voltage
5 volts (looking down PSL camera)
48 volts (front-viewing PSL camera)
Video encoding format
264
Focal length
0.12 inch (3.2 mm)
Power Systems
XAG B13970 smart super chargeable battery
