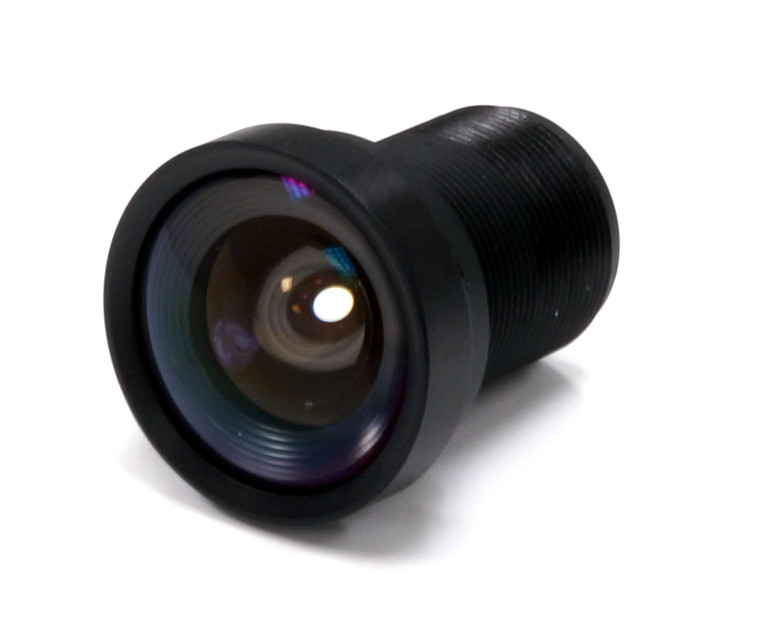

Yuneec Typhoon H 3.97mm f/2.8 82d HFOV 16MP NDVI (No Distortion) Lens

Yuneec Typhoon H 3.97mm f/2.8 82d HFOV 16MP NDVI (No Distortion) Lens

×

Sorry this item is currently out of stock

×
Price:
$260.00
SKU:
GP39728NDVI
Availability:
Usually Ships Within 1 Business Day
Shipping:
Calculated at checkout
Description
Specifications
Product Videos
Specifications
Reviews
Related Products
Also Viewed
By Category
  • Product Description

    The 3.97mm is the newest 4K lens designed for the GoPro Hero, DJI Phantom 4/3, DJI Inspire X3 and Yuneec Typhoon H CGO3+ camera lines. With its 82 degree HFOV 16MP sharp 8 glass non-fisheye optics this lens captures the entire image sensor.

    After removing the stock lens the 3.97mm threads in easily. No need to change to a different lens mount and all GoPro, DJI and Yuneec accessories that mount around the lens surround are supported. No gap is present between the lens and the black GoPro lens surround as the 3.97mm lens spans the entire cavity. On the DJI cameras a small gap will be created as the lens is not as large in diameter as the stock lens, so we recommend using the original glass lens protector to keep debris out. On the Yuneec CGO3+ camera the stock lens is the same diameter so no gap or modifications to the lens surround is required with the 3.97mm lens installed. No fisheye/barrel distortion means objects are naturally straight and just as your eyes see the world.  With the same f-stop as the stock lens on the GoPro, DJI and Yuneec cameras the capture software will never know the lens has been changed. Light levels will be handled as normal and depth of field will be very similar. With it being over 40 degrees narrower than the stock GoPro lens, 8 degrees narrower than the DJI Inspire X3 and Phantom 4/3 cameras and 16 degrees narrower than the Yuneec H CGO3+ camera, this lens brings your subjects closer without being too zoomed in to introduce unwanted image jitter. Available in a large selection of filters the 3.97mm can capture everything from beautiful RGB color to NDVI plant health images. If you've thought of changing the lens on your camera but were never happy with the way the lenses on the market handled lens flare, you'll be glad to know that was a major concern of ours during development. We went through many iterations to reduce any "bad", concentrated flare spots and left only minimal cinematic flare.  For the best quality media we recommend the 3.97mm lens (photo of it installed shown below). The glue holding the original lens into the lens mount is very strong, so please make sure you have a good grip on the lens and mount before attempting to remove.

    Model Number GP39728
    Focal Length 3.97mm
    35mm Equivalent 22.63mm
    Fish-eye Distortion NO
    Black Vignetting NO
    Weight (Stock Lens = 5.5g) 7.18g
    Angle of View (V*H*D) 65 x 82 x 92 degrees
    Aperture (f Stop) 2.8
    Back Focal Length (BFL) 4.65mm
    Dimensions (Diameter x Length) 17.40 x 22.48mm
    Native Camera Sensor Support 1/2.3"
    Native Megapixel Support 16MP
    Thread Material Metal
    Optics Material Glass - 8 Elements
    Fits in GoPro Waterproof Case? Yes (Pressure on Lens Will Cause it to Shift Focus, So Use Extended Backdoor)
    GoPro Case Mod Needed? No (But Puts Less Pressure on Lens)
    Dust Ring Included? Yes (DR_A + DR_B)



    Filter Type Description
    Visible Light RGB Filter [Recommended] This is the filter that every camera has to capture Visible Light that our eyes see. All infrared (IR) light is blocked so the colors are normal. This is the same filter the stock camera has.
    NDVI Filter (Red + NIR) Filter Our NDVI filter captures reflected Near Infrared Light and Red Light that is mostly absorbed by plants. By post-processing the captured images you can apply a color gradient that shows the contrast between regions of healthy and non-healthy vegetation. The Infrared light will show up in the camera's blue channel and the Red light will show up in the red channel, making it very easy to separate and process for NDVI.
    Infrared Light (850nm) Filter This lens only sees a narrow band of Infrared Light around 850nm and is typically used with a Red Light filter camera to produce NDVI, ENDVI or similar agricultural health survey maps.
    Red Light Filter This lens only sees a narrow band of Red Light around 650nm and is typically used with an Infrared Light filter camera to produce NDVI, ENDVI or similar agricultural health survey maps.
    Green Light Filter This lens only sees a narrow band of Green Light around 548nm and is typically used with an Infrared and Red Light filter camera to produce ENDVI or similar agricultural health survey maps.
    Blue Light Filter This lens only sees a narrow band of Blue Light around 450nm and is used for various applications.
    No Filter This lens has NO filter on it, allowing all wavelengths of light through to the sensor including Visible and Infrared light. This lens will produce an overly pink image and the colors will be washed out and dull.





    dsc06871-e-grande.jpedsc06882-e-grande.jpe

  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Product Videos

    • Sunset at Scripps Pier Aerial 4K - 3DR SOLO - PeauPro82 3.97mm
      The PeauPro82 with its 3.97mm lens allows you to capture the w...
    • Lens Compare: GoPro Hero 4 Black No-Fisheye 3.97mm vs Stock - Area Of Interest - Crane Orbit
      This video shows the PeauPro82 camera with our new 3.97mm lens...

    Sunset at Scripps Pier Aerial 4K - 3DR SOLO - PeauPro82 3.97mm

    The PeauPro82 with its 3.97mm lens allows you to capture the world as you see it. Here we mount the PeauPro82 to a 3DR SOLO flying around Scrips Pier in San Diego, CA. All the shots around the pier itself were actually autonomous missions executed using Tower, the rest was manual flying. An ND8 was attached to the camera and minor stabilization was applied. Lens purchase information: http://www.peauproductions.com/products/gp39728
