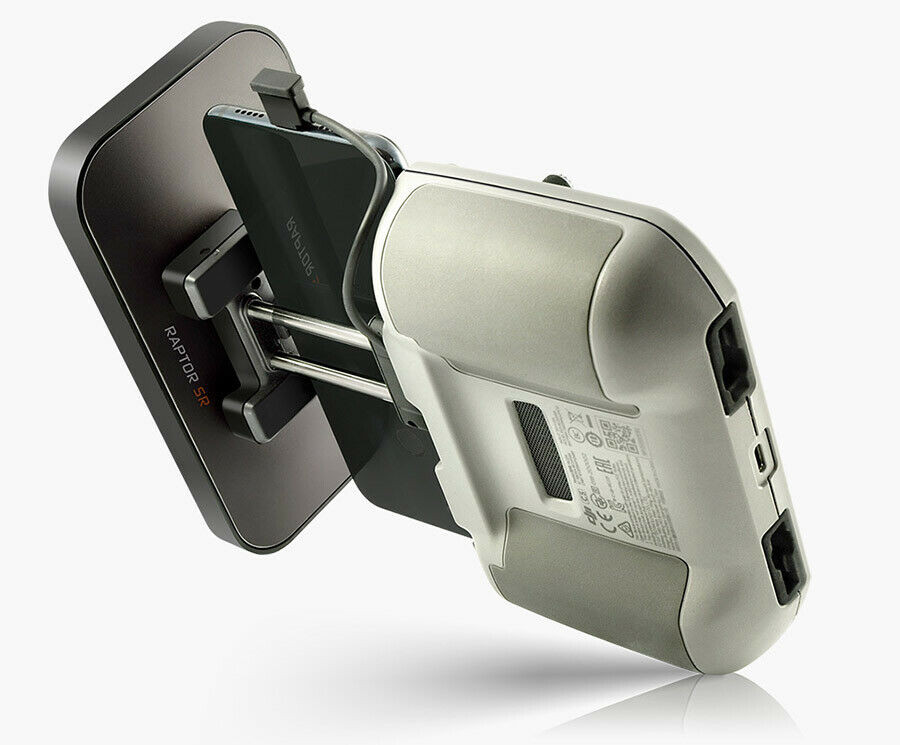

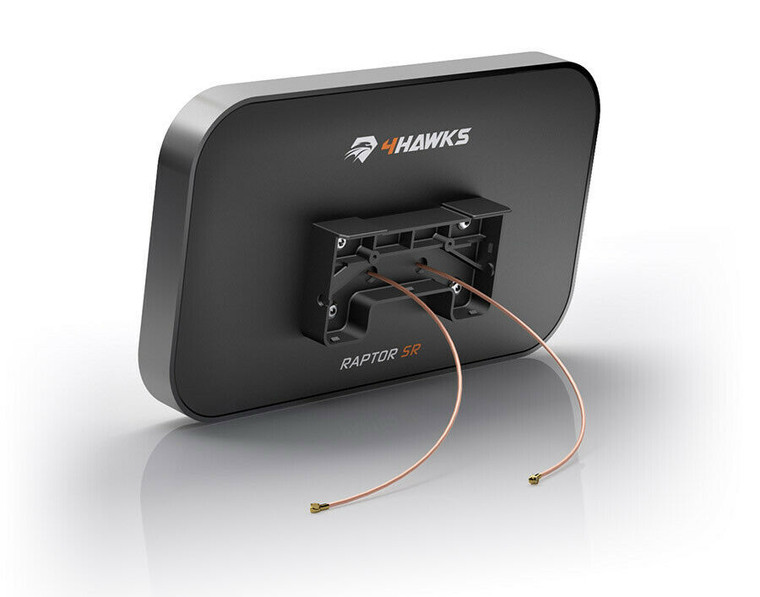

    4Hawks Raptor SR Range Extender Antenna | DJI Mavic 3 Series

    You can now reach further distance than with the standard stock antennas provided by the drone manufacture. By upgrading to the new, dual band antenna by 4Hawks, the Raptor SR Range Extender will increase your drone’s flight range.  During design, all materials were precisely selected and engineered to give you the best flight experience possible. The radio transparent radome is made by an advanced injection molding process. The concept behind the look of the antenna was to keep the main merits of DJI Mavic Air 2 and Mini2, which is its compact size. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces).



    FEATURES:

    • Concurrent dual band 2.4 & 5GHz
    • No modification to the drone itself
    • Long range extension without external boosters
    • Design does not contain any removable parts
    • Complete solution

    Works with the following model:

    DJI Mavic 3

    What is included:

    • Antenna
    • Cables
    • Installation tool set












    OUTSTANDING ANTENNA BEAM PERFORMANCE

    In comparison to original omnidirectional antennas with weak

    distance efficiency, 4Hawks’ Raptor patch antenna extends sectoral

    coverage, increasing the maximum flight range.

    OPTIMIZED WAVES PROPAGATION

    Signal is enhanced thanks to efficient waves propagation pointed towards drone.



     Standard Antenna


     4Hawks Antenna


     Standard Antenna



     4Hawks Antenna



    Specification

    Electrical parameters

    Frequencies
    Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
    Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz

    Gain
    Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
    Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)

    VSWR
    Port 1:   < 1.50  (max. < 2.15)
    Port 2:   < 1.50  (max. < 2.15)

    Beamwidth
    Port 1:   90°/65° & 55°/55°
    Port 2:   90°/65° & 55°/55°

    Polarization
    Port 1:   Vertical
    Port 2:   Vertical

    Impedance
    Port 1:   50 Ω
    Port 2:   50 Ω

    Mechanical parameters

    Material
    Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB

    Weight
    110g antenna

    Dimensions
    16.1 x 9.1 x 1.7 cm
    6.34 x 3.60 x 0.67 inch

    Connection
    Port 1:   RP-SMA female
    Port 2:   RP-SMA female



     4Hawks Raptor SR Range Extender Antenna DJI Mavic 3

    *Product Liability Disclaimer* This product is an aftermarket antenna system, designed for modifying the original OEM product antenna on the RC Ground Station Controller. When using this antenna, some custom modification to the RC Ground Station Controller may be required, and the working knowledge of basic tools is recommended. SkyDronesUSA, LLC shall not be held liable or responsible for any damages of any kind that may occur during or after installation of this aftermarket antenna to the RC Ground Station Controller. That after installation of the aftermarket antenna the owner of the drone and control system accepts complete liability for the results of their flight and waives all claims against SkyDronesUSA, LLC. By making purchase of this item, you are acknowledging and accepting the terms of this Product Liability Disclaimer.
