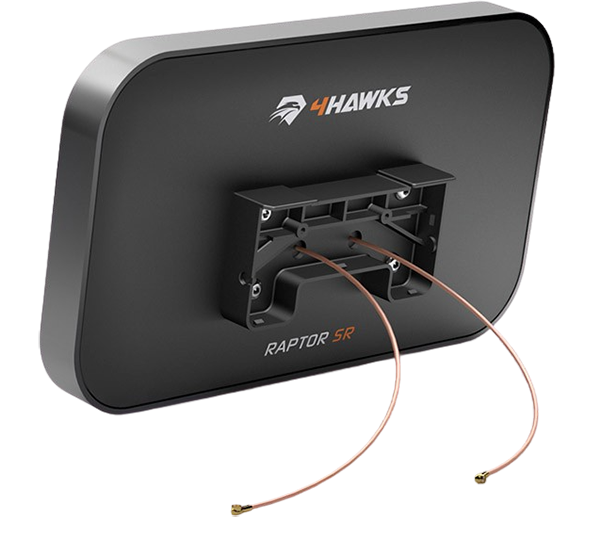

4Hawks Raptor SR Range Extender Antenna DJI Mavic Air 2S (A122S)

4Hawks Raptor SR Range Extender Antenna DJI Mavic Air 2S

4Hawks
SKU:
A122S
|
UPC:
853854008520
Availability:
Usually Ships Within 1 Business Day
$129.00
(No reviews yet) Write a Review
Current Stock:
Description

4Hawks Raptor SR Range Extender Antenna DJI Mavic Air 2S

You can now reach further distance than with the standard stock antennas provided by the drone manufacture. By upgrading to the new, dual band antenna by 4Hawks, the Raptor SR Range Extender will increase your drone’s flight range.  During design, all materials were precisely selected and engineered to give you the best flight experience possible. The radio transparent radome is made by an advanced injection molding process. The concept behind the look of the antenna was to keep the main merits of DJI Mavic Air 2S, which is its compact size. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting the range extender leads to permanent changes with the remote controller. The entire set is lightweight and uniform (without any loose equipment pieces).



FEATURES:

  • Concurrent dual band 2.4 & 5GHz
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts
  • Complete solution

Works with the following model:

DJI Mavic Air 2S

What is included:

  • Antenna
  • Cables
  • Installation tool set












OUTSTANDING ANTENNA BEAM PERFORMANCE

In comparison to original omnidirectional antennas with weak

distance efficiency, 4Hawks’ Raptor patch antenna extends sectoral

coverage, increasing the maximum flight range.

OPTIMIZED WAVES PROPAGATION

Signal is enhanced thanks to efficient waves propagation pointed towards drone.



 Standard Antenna


 4Hawks Antenna


 Standard Antenna



 4Hawks Antenna



Specification

Electrical parameters

Frequencies
Port 1:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2:   2.40 - 2.50 GHz & 5.00 - 5.80 GHz

Gain
Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)

VSWR
Port 1:   < 1.50  (max. < 2.15)
Port 2:   < 1.50  (max. < 2.15)

Beamwidth
Port 1:   90°/65° & 55°/55°
Port 2:   90°/65° & 55°/55°

Polarization
Port 1:   Vertical
Port 2:   Vertical

Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters


Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB

Weight
110g antenna

Dimensions
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female



 4Hawks Raptor SR Range Extender Antenna DJI Mavic Air 2S

*Product Liability Disclaimer* This product is an aftermarket antenna system, designed for modifying the original OEM product antenna on the RC Ground Station Controller. When using this antenna, some custom modification to the RC Ground Station Controller may be required, and the working knowledge of basic tools is recommended. SkyDronesUSA, LLC shall not be held liable or responsible for any damages of any kind that may occur during or after installation of this aftermarket antenna to the RC Ground Station Controller. That after installation of the aftermarket antenna the owner of the drone and control system accepts complete liability for the results of their flight and waives all claims against SkyDronesUSA, LLC. By making purchase of this item, you are acknowledging and accepting the terms of this Product Liability Disclaimer.
