  • Product Description

    This camera sees both Blue Light and Infrared (IR) Light with no cross talk between bands. It is most often used as a single camera NDVI solution for assessing where plants are located in agricultural surveying. By processing the resulting image, you can see the locations of varying levels of vegetation health and where there are no plants. Camera captures a photo every 3 seconds. For best results, we recommend a survey overlap of at least 85% front-lap and 70% side-lap and a maximum 5f/s (1.5m/s) speed for every 65ft (20m) of altitude (AGL). While the results from this dual-band camera clearly show where vegetation is located (or not located), this camera does not show differences in plant health as accurately as an Infrared and Red Light dual camera setup.

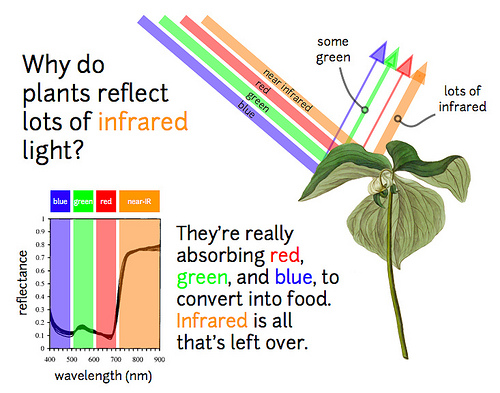

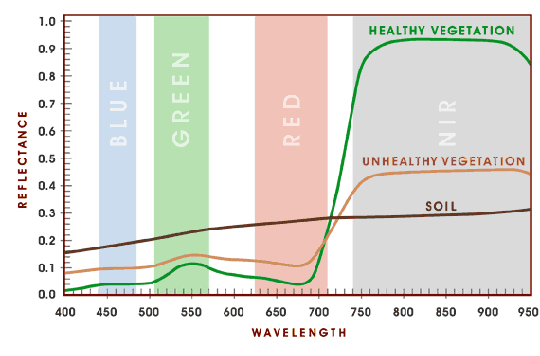

    nir-vegetation-graph.gif plants-reflect.jpg

    Included Accessories

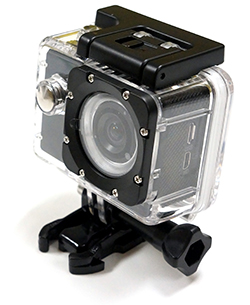

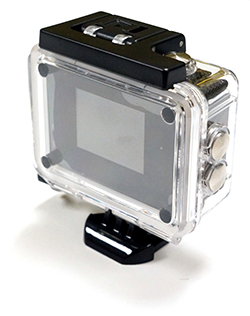

    mapir-case-frontr.jpg mapir-case-backr.jpg mapir-frame-frontr.jpg mapir-frame-backr.jpg
     camera-mounts-includedr.jpg  mapir-chargerr.jpg  mapir-miscr.jpg
    box-frontr.jpg box-backr.jpg

    Product Specifications

    Image Resolution 2 MegaPixel (4,032 x 3,024 px)
    Lens Optics 60° HFOV (31mm), f/2.8 Aperture, -0.85% Extreme Low Distortion (Non-Fisheye) Glass Lens
    Ground Sample Distance (GSD) 6.83 cm/px at 120 m (~400 ft) AGL
    Capture Speed 1 Picture Every 3 Seconds (24 bit JPG)
    Battery Removable Li-ion (900mAh) [Not Required When USB Powered], ≈2,500 Photos Per Charge
    Weight 47g (1.7 oz) [Without Battery], 64g (2.3 oz) [With Battery]
    Dimensions 59.2 x 41.0 x 29.8mm (Length x Height x Depth)
    Memory Storage Micro SD (Up To 32GB Card) [32GB Card ≈ 8,400 Pictures (Fine)]
    White Balance  Auto* / Daylight / Cloudy / Tungsten / Fluorescent
    ISO Auto* / 100 / 200 / 400
    Exposure +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0
    Quality Fine* / Normal / Economy
    Sharpness Strong* / Normal / Soft
    LCD 1.5” Color LCD Screen
    Video Out  HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)
    TV Mode NTSC / PAL
    Power USB (Micro-A Cable Included, Optional Micro USB FPV Cable)
    OSD Language  English*, French, Spanish, German, Italian, Chinese, Russian, Japanese, Korean
    OSD Display ON* / OFF
    Wifi Wireless Mobile Android & iOS Control Viewing Application
    Date Stamp ON / OFF*
    Sound ON* / OFF
    Auto Power Off ON / OFF*
    Screensaver ON / OFF*
    Vertical Rotate ON / OFF*
    Included Accessories USB Charge Cable, USB Wall Charger, Waterproof Case + Mounts, Cleaning Cloth, Manual
    * = Default Setting
